Installed the fuel injection servo and exhaust system

Installed the fuel injection servo. A gasket, four nuts, and two fuel lines. pretty straightforward.

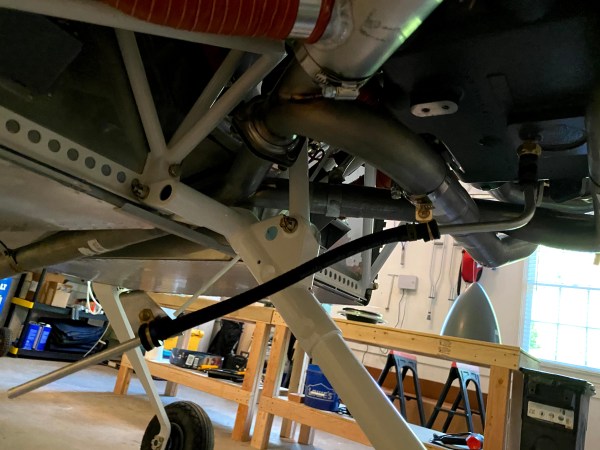

Installed the exhaust system. Slightly less straightforward than the fuel servo but not too bad.





Today’s Time (hours): 5.0
Finish kit (hours): 209.0
Total Time (hours): 943.0



More engine stuff

I wired up the ammeter. I picked up a couple of inline fuses that had mounting holes. I attached them to the engine mount with an adel clamp.



img_4695

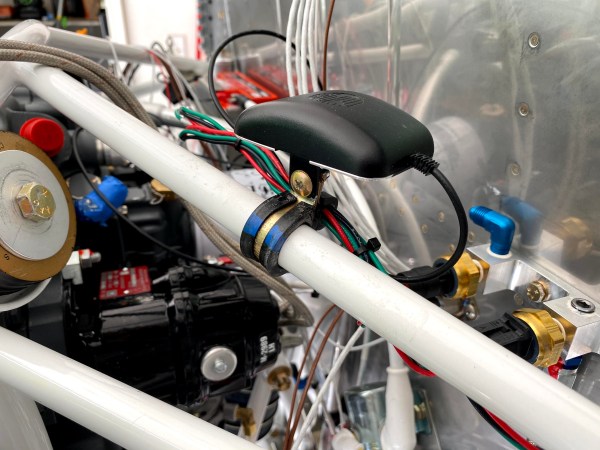

I fabricated a mount for the Garmin GA 27 GPS antenna by modifying the suction cup mount that came with the antenna. I cut it to match the profile of the antenna, bent the mounting tab to a right angle and cut it shorter. I drilled a hole for the mounting screw and viola.

img_4696

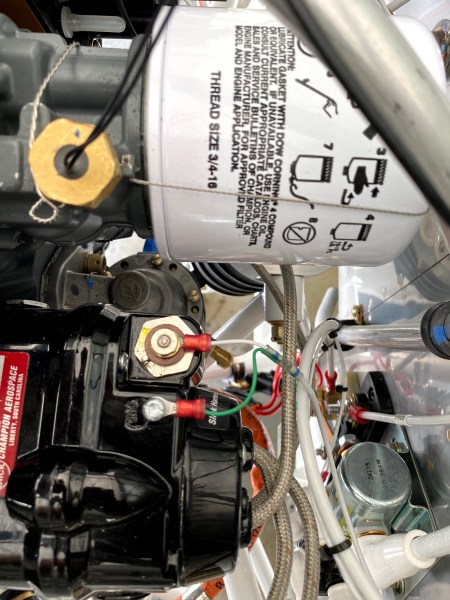

I wired up the left magneto.

img_4698

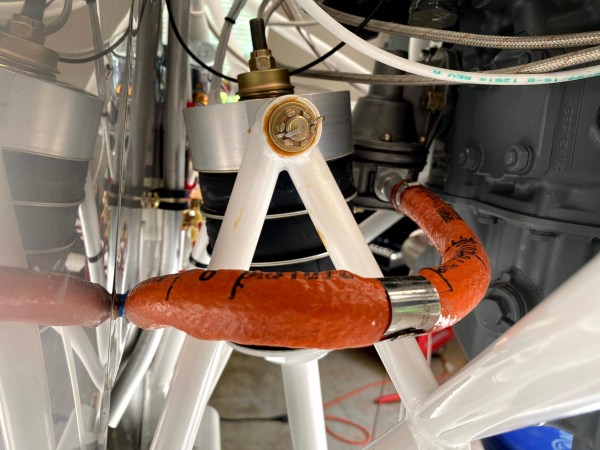

I installed the fuel line form the firewall to the fuel pump.

img_4699

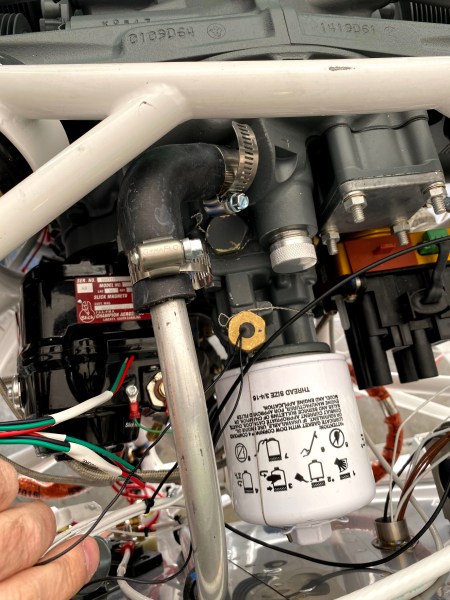

I cut the right angle hose segment and installed the breather tube.

img_4700

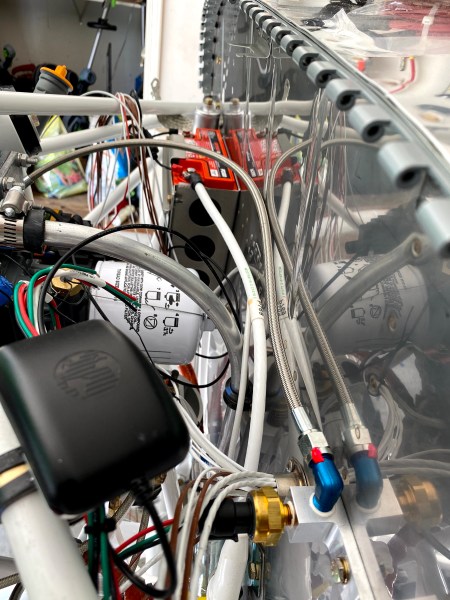

I installed the line to the oil pressure sensor.

img_4701

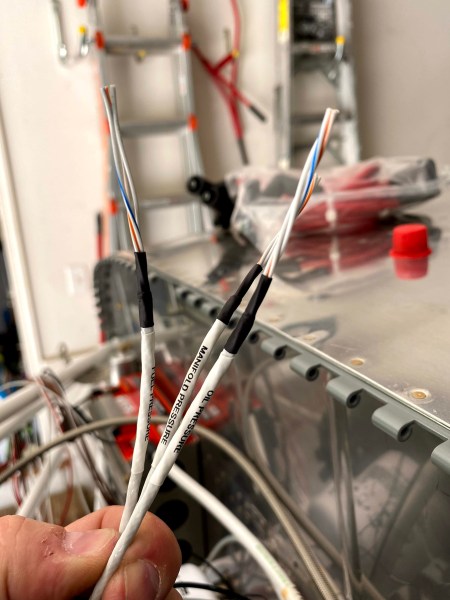

I began terminating the oil, fuel, and manifold pressure sensor wires but realized that I didn’t have any fully insulate quick disconnect terminals. So put in my daily Aircraft Spruce order.

img_4702

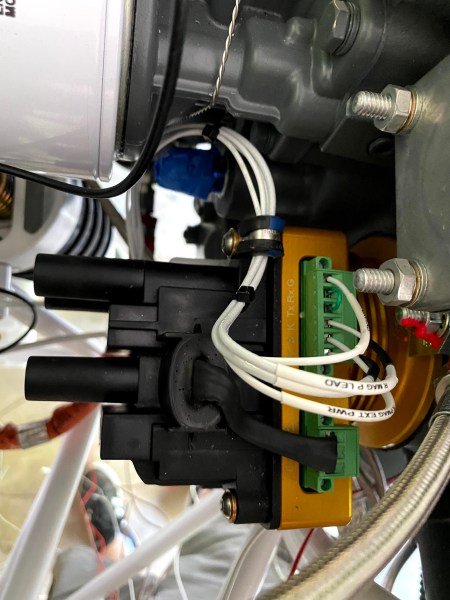

I wired up the right PMag.

img_4703



Attached the upper and lower oil cooler lines.





Today’s Time (hours): 7.0
Finish kit (hours): 204.0
Total Time (hours): 938.0



Engine install continues

Eeked out a few hours of building this week.

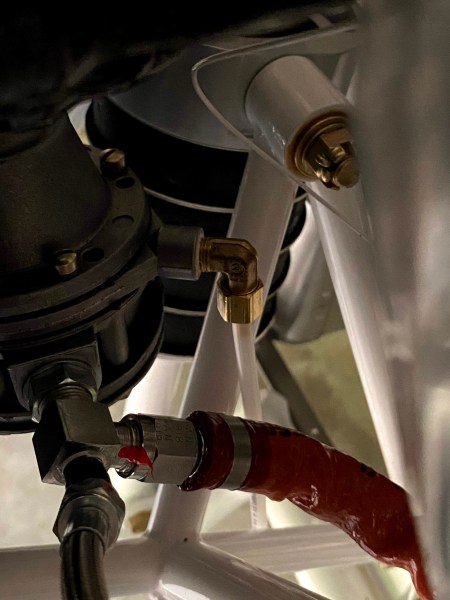

Installed the fuel overflow tube.

img_4680

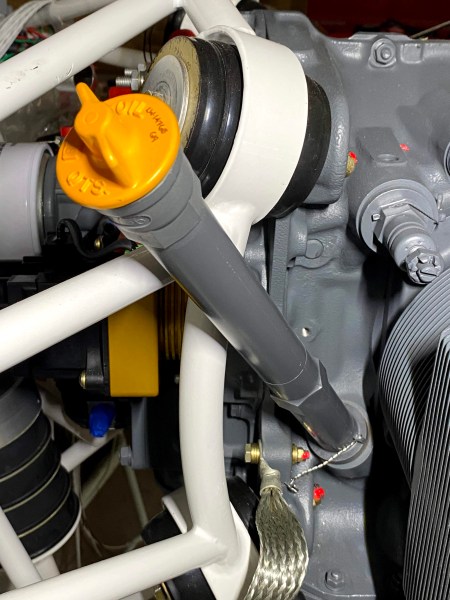

Installed the dipstick tube and lock wired it in place.

img_4682



I ordered a tach cover from Vans and this is what showed up. It has no means to lock wire it. I’m going to replace it with one from Spruce.

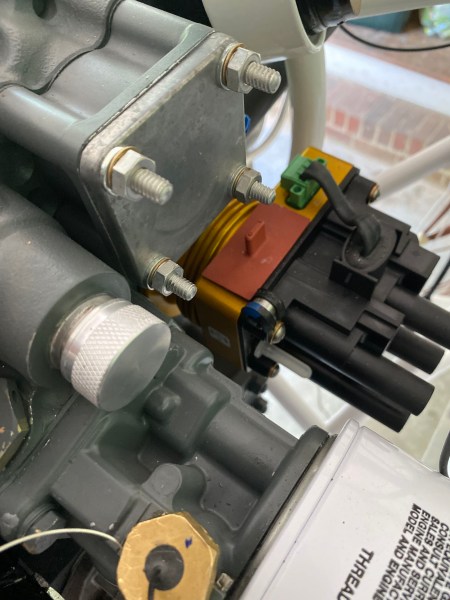

61057956656__0b035d0f-1f5c-4d94-9dd9-309a20e637f7

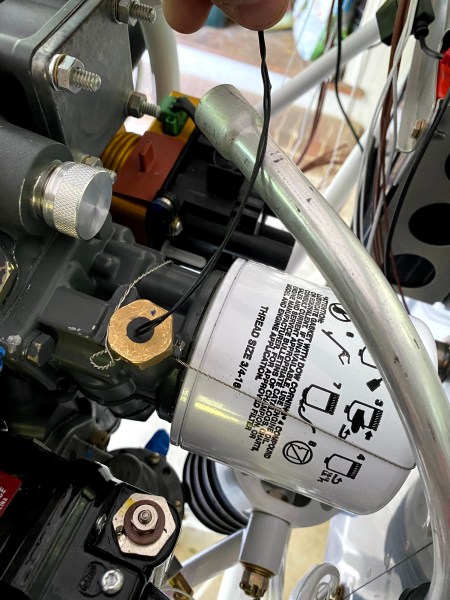

Installed the oil temperature sensor.

img_4685

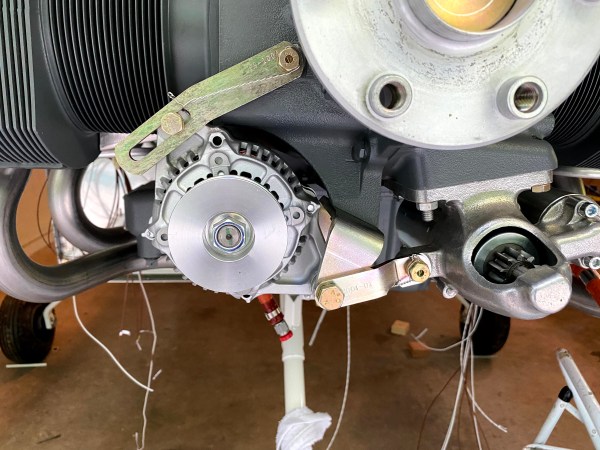

Installed the alternator.

img_4687



Installed the cylinder head temperature sensors.



Today’s Time (hours): 4.0
Finish kit (hours): 197.0
Total Time (hours): 931.0



Installed prop governor, fuel flow sensor, and sniffle valve

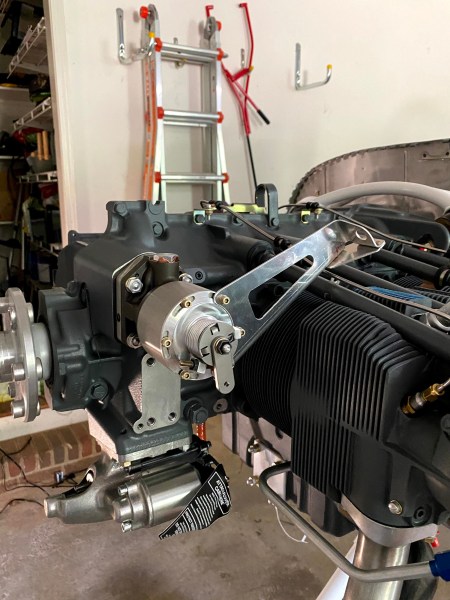

Installed the prop governor. I wasn’t sure what hardware to use. The plans said to refer to the engine/governor installation instructions. The Hartzell instructions said to refer to the engine manufacturer’s instructions. The Lycoming instructions that came with the engine were mute on the topic. I was able to find an illustrated parts catalogue for the engine on Lycoming’s web site. It showed a washer, a star washer and a plain nut. Now I need to figure out where Lycoming keeps its torque values.

img_4670

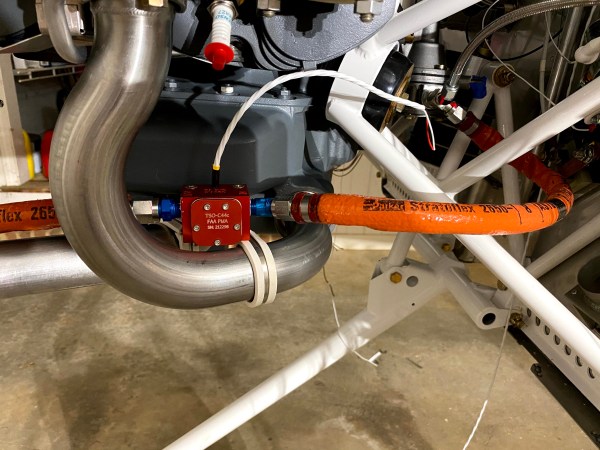

I installed the fuel flow sensor and the fuel lines from the fuel pump and to the fuel injection servo.

img_4672

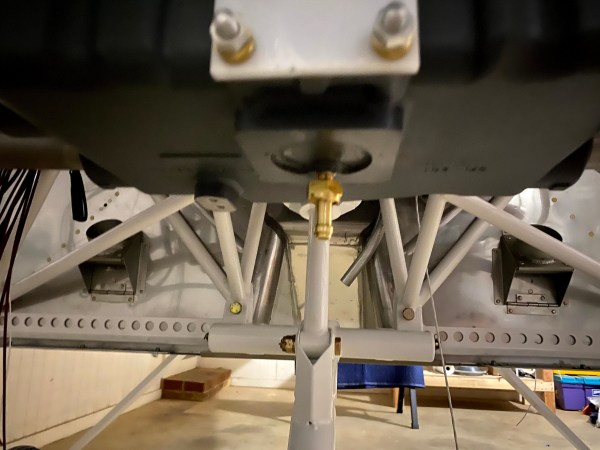

I installed the sniffle valve. This seemed like it was going to be straightforward. Remove the plug; install the valve. What I didn’t take into account was that the intake manifold was full of preservative oil. So now my nose gear and tire are well lubricated and in no danger of corroding.

img_4673



Today’s Time (hours): 2.0
Finish kit (hours): 193.0
Total Time (hours): 927.0



Got the gear and engine mounted and moved to the garage!

Special thank you to Jared, Wes, Scott, and Remy for all their help on Saturday! We got the fuselage out of the basement, Got the main gear attached and wheeled it around the house, up the hill, and into the garage. Then we bolted on the engine mount and nose gear on.



Mounted the battery and starter relays to the firewall along with the associated fuse and ammeter shunt. Mounted the MAP, oil pressure, and fuel pressure sensors. Jared and Wes added all of the fittings to the Engine and we bolted it to the mount.



With the relays wired, I threw the aster switch and everything lit up! No smoke. Yay.

img_4667



Today’s Time (hours): 16.0
Finish kit (hours): 191.0
Total Time (hours): 925.0



More work on the landing gear

Primed the upper gear braces and gear attach angles.

img_4622



Split the nose wheel. Stuffed the tube into the tire and semi-inflated it. Put the tire and tube on the heels and bolted them back together.



Packed the bearings using my handy dandy bearing packer and reinstalled them into the wheel. Did a similar job on the main gear wheels. The main gear bearings were packed in a preservative grease. So I cleaned them with solvent dried them with compressed air, and repacked them with Aeroshell 22.



All three wheels assembled.

img_4629



I upgraded the nose gear wheel and axle to Matco. The axle has a bolt that keeps the axle from rotating. So I drilled a hole in the fork to accommodate.  I temporarily assembled the fork and axle to keep everything together.



I installed the gear attach angles and the upper gear braces. I loosely installed the gear attach bars. I should be able to just bolt the gear legs in and tighten them up.

img_4637



Next step is to clean the garage and relocate the fuselage from the basement. It won’t fit through the door once the gear is attached.



Today’s Time (hours): 8.0
Finish kit (hours): 175.0
Total Time (hours): 909.0



Began TricycleLanding Gear & Engine Mount (Section 40A)

Screen Shot 2020-04-25 at 8.11.49 PM



Separated the gear attachment angles on the band saw. This is a hefty chunk of aluminum angle. It took a good 15 minutes to get through it on my puny band saw.

img_4619



I decided that a new tool was in order to make the diagonal cuts. So I picked up a DeWalt Angle grinder and some cutoff wheels. It cut like butter. It took all of five minutes to get both angles cut.



Scuffed the angles as well as the other parts. Ready for priming tomorrow.



Today’s Time (hours): 2.0
Finish kit (hours): 167.0
Total Time (hours): 901.0



Finished wiring the fuse panel

Cut all the power wires to length and labeled each. Stripped each wire and terminated with a crimp on fuse holder. Had to buy yet another crimp tool for these… https://www.amazon.com/dp/B004P2VAVM/ref=cm_sw_r_sms_apip_atOw34QqkDCOo

I’m going to open a crimper museum when I’m done with the plane.



Inserted all of the terminated power wires into the Bussmann fuse block that I bought from Waytek.

img_4612



Mounted the fuse block and the Van’s power module kit, popped the fuses in and put the cover on.



I temporarily connected the battery and everything powered up with out incident or smoke. I still need to wire the GMU 11 in the left wing. Then I can plug the wing harnesses into the fuselage and test everything out. I also verified that PFD1 would power up from the IBBS. Very exciting to see all the avionics light up though.

img_4618



Today’s Time (hours): 8.0
Finish kit (hours): 165.0
Total Time (hours): 899.0



Finished wiring the panel

Wired the GSU 25 ADAHRS.

img_4597



Wired the G5 backup flight instrument.

img_4598



Pilot side complete. I still have a bit of tidying up and lacing to do. But everything is wired.



Terminated all of the ground lines to the ground block.

img_4601



Wired the PFD2 GDU 460.

img_4602



I still need to install the fuse panel and wire it up. I also need to wire the GMU 11 in the wing and reconfigure the connectors at the wing roots. Then the wiring will be complete.



Today’s Time (hours): 7.0
Finish kit (hours): 157.0
Total Time (hours): 891.0



Wired all the switches and the PFD-1

It’s been another busy week at work but managed to get in a few hours during the evenings and a bunch of time today.

Wired all the switches and routed all of the required power and ground wires as well as all the wires through the firewall for alternator, battery and starter relays, and magnetos.

img_4574



Reinstalled the PFD-1 GDU 460 and G5 backup instrument. I plumbed in the pitot, static, and AOA lines.

img_4594



Wired up the GDU 360. I was a real rats nest behind the panel so i used some temporary wire ties to keep things organized while I finish wiring the GSU 25 and the G5. Then I’ll secure everything properly and lace up the wire bundles.



I also realized that despite all of my wiring planning, I had accidentally omitted the GTP 59 temperature probe form the plan. I ran a shielded three-conductor cable from the left wing root to the panel.



Today’s Time (hours): 12.0
Finish kit (hours): 150.0
Total Time (hours): 884.0
