Horizontal Stabilizer Front Spar

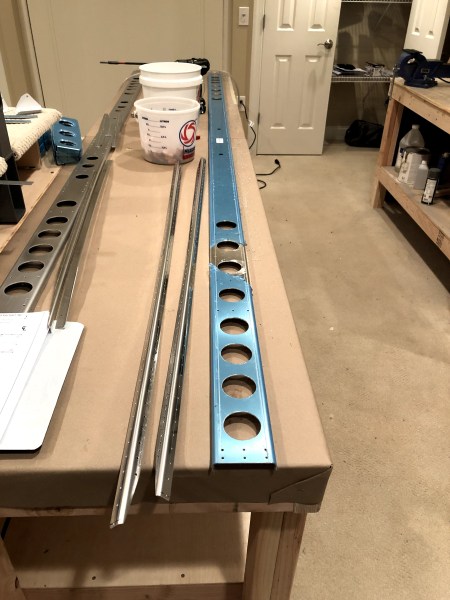

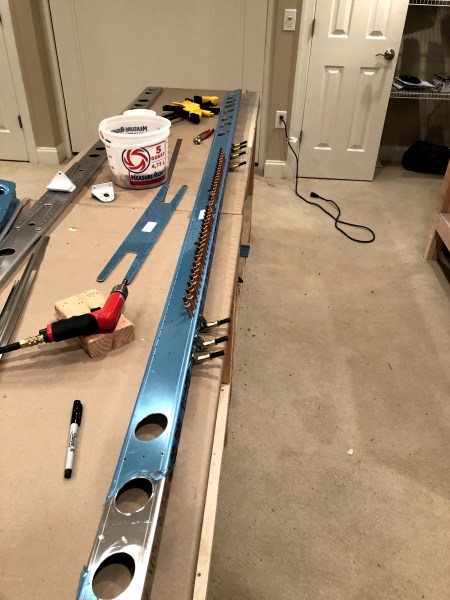

Got the font spar to the point where it’s ready to be scuffed and primed. This was way more work than it looked like in the plans. It all started with the spar caps. They had to be trimmed and deburred. Then they’re match drilled to the spar web. Then disassembled, deburred, reassembled. Then they are match drilled to the spar flanges, disassembled and deburred. There were approximately a million and one holes drilled and deburred in these things.

IMG_1697

IMG_1698

Then on to the spar doubler. The usual drill (no pun intended)… Deburr edges, fit, cleco, final drill, disassemble, deburr holes.

IMG_1699

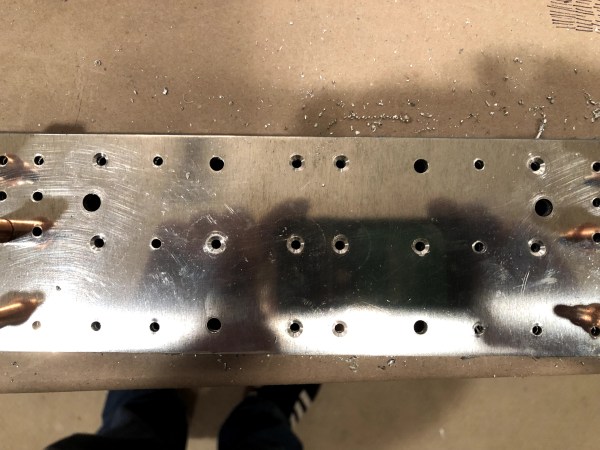

Countersunk twelve of the holes on the doubler.

IMG_1700

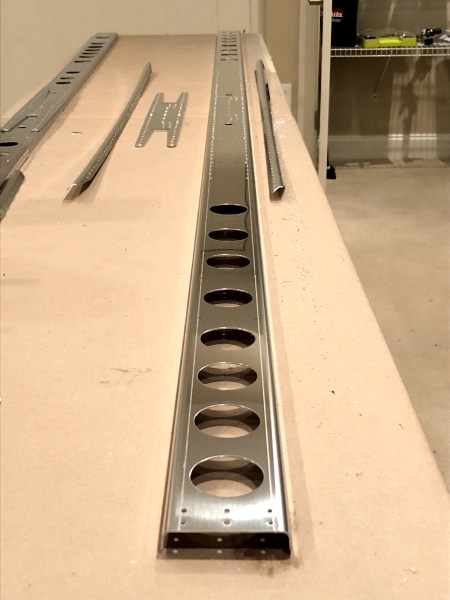

And here are all the front spar parts ready for scuff and prime.

IMG_1701



Today’s Time (hours): 5.0
Empennage Time (hours): 53.5
Total Time (hours): 53.5



Disassembled, Deburred, Dimpled

Deburred and dimpled the skins and substructure.

img_1643

Machine Countersunk the trailing edge wedge.

img_1646

Began back riveting the stiffeners into the skins but it’s loud and it got late so I quit until tomorrow.

img_1647

Today’s Time (hours): 3.0
Empennage Time (hours): 30.0
Total Time (hours): 30.0
