Flaps Completed

Same drill for the right flap… Just barely set the trailing edge rivets with the squeezer then set the shop heads flush with a mushroom set in the gun and a back riveting plate. I riveted the bottom skins with blind rivets. Then I installed hardware.



Flaps complete!

img_2740

Emailed Van’s about my tank skins and heard back on Friday. The right skin is back ordered so they estimate that they will ship end of next week. I’ve got plenty to keep me busy until then… On to the Ailerons.

Today’s Time (hours): 1.0
Wing Time (hours): 167.0
Total Time (hours): 378.0



Finished the left flap

Worked on both left and right flaps simultaneously; performing each step on one then the other. Riveted the top skins and nose skins to the spars and then to the ribs. I back riveted the aft-most two holes in each rib.





Clecoed then riveted the bottom skins and nose skins to the spars. I had to stick my arm down between the skins, slightly pulling back the bottom skin to be able to back these rivets. Glad I deburred well. My arms were pretty well scraped by the end of this step.





Final drilled #33 and blind riveted the nose skins to the nose ribs.





Applied 3M double-sided VHB tape to the trailing edge extrusions. I clecoed the extrusions in place in the left wing, removing the bottom backing from the tape as I went. I let the VHB adhesive set up for an hour or so and remove the top backing form the tape; removing and replacing clecos as I went.





I let the top tape set up for a couple of hours. I clecoed and taped the trailing edge into the right wing at this point and moved on to riveting the left wing while the bottom tape set up.

I used the squeezer to just barely set rivets in the trailing edge. Then used a mushroom set in the gun with a back rivet plate to fully set the back of the double flush rivets.





I final drilled #33 all the bottom skin/rib holes and blind riveted. I used the squeezer to set solid rivets in the inboard and outboard end ribs. I installed the rod end for the flap actuator. Left wing done!





I removed the backing form the top tape on the right trailing edge. I’ll finish the right flap up in the morning.

img_2736



Today’s Time (hours): 6.0
Wing Time (hours): 166.0
Total Time (hours): 377.0



Primed everything and began assembly

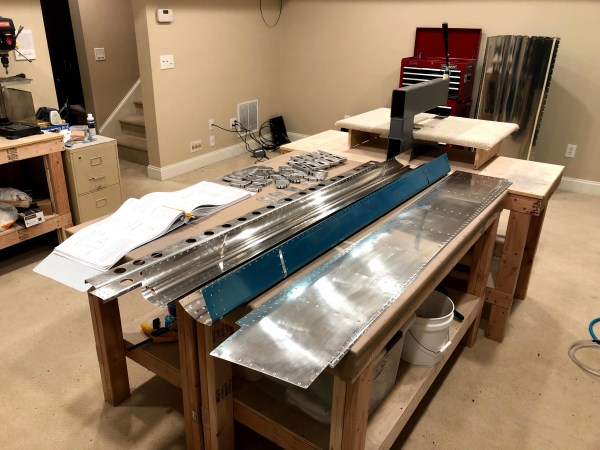

Primed everything



Riveted the nutplates and doublers to the rod end ribs.



Riveted the hinge halves to the ribs. Then installed the hardware and double flush riveted the halves together.



Today’s Time (hours): 2.0
Wing Time (hours): 158.0
Total Time (hours): 369.0



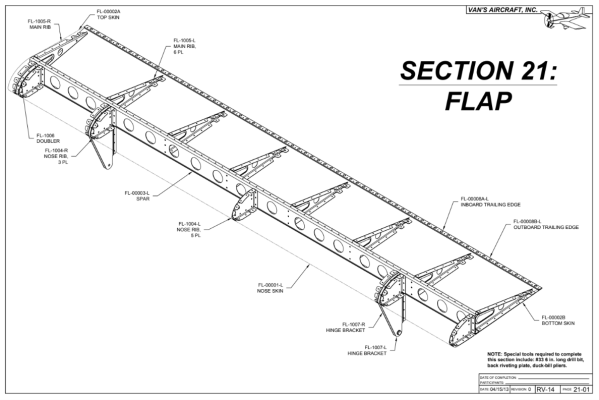

Fitting the flaps together

Assembled the inboard and outboard rod end ribs. Clecoed the ribs and doubles together. Match drilled the #40 holes and final drilled the 1/4″ hole. Countersunk the #40 holes on the outboard doublers.



Clecoed the ribs to the flap hinges and final drilled all the #30 holes.

IMG_2681



Modified all the main ribs by removing the top forward tab from each with the Dremel and a cutoff wheel. Finished with a bit of sanding to remove the burrs.

IMG_2683



Assembled the flap substructures.

IMG_2684



Trimmed the inboard and outboard trailing edges to final size with the bandsaw and finished on the scotch brite wheel.



Clecoed the flaps together.



Match drilled the two top holes in each of the nose ribs. I also final drilled all of the holes in the trailing edges.

img_2693



Assembled the hardware in the hinge to hold everything in alignment and match drilled the four holes in the  trailing edge of the hinge.

img_2692

Disassembled everything.

img_2694

Next I need to machine countersink the holes in the trailing edge wedge and the holes I just drilled in the hinges. Then dimple and prime everything.

Today’s Time (hours): 6.5
Wing Time (hours): 152.5
Total Time (hours): 363.5
