Horizontal Stabilizer Complete

Riveted the skin to the forward spar and all the ribs. Did all of these rivets with the gun and small tungsten bucking bar. It was a long day. Only had to drill out a couple of duds, though.

Then clecoed the rear spar to the ribs and skins and riveted in place. The inboard and outboard ribs are riveted with AN470-4 rivets while all the others are blind-riveted with LP4’s. I used the squeezer to rivet the skins to the rear spar flanges.

Et Viola…

Merry Christmas!

Today’s Time (hours):	7.0
Empennage Time (hours):	76.0
Total Time (hours):	76.0

Primed and Assembled Horizontal Stabilizer

Scuffed and primed the skins, ribs, stringers and center web.

Riveted together the inboard ribs, web, and stringers.

Clecoed and riveted the ribs to the front spar

Clecoed and riveted four nose ribs to the skins. Special thanks to Jared Solomon for lending me his HS cradles. Also for the awesome flight flight yesterday in his RV-14. Makes me want to build faster.

Clecoed the forward spar and associated substructure to the skins. Ready for final riveting. Should have the HS buttoned up tomorrow!

A very satisfying day of progress!

Today’s Time (hours):	5.0
Empennage Time (hours):	69.0
Total Time (hours):	69.0

Countersunk spar flanges and Stringers and dimpled skins

Machine countersunk the flanges of both spars.

Used the blunted soldering iron to remove the blue plastic from the rivet lines. Then used a file and sand paper to clean up the edges. They were pretty rough.

Used the trusty DRDT-2 to dimple the skins. Good upper body workout. Lots of holes!

Tada…

Ribs, stringers, and skins all ready for scuff and prime.

Today’s Time (hours):	3.0
Empennage Time (hours):	64.0
Total Time (hours):	64.0

Prepared HS Ribs

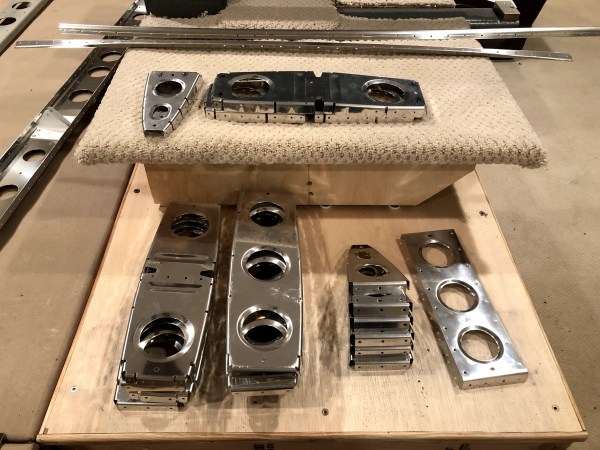

Deburred all the HS ribs with 400 grit sand paper. Sand paper seemed like the most straightforward approach because of all the segments in the flanges. I was able to get in between the segments with it.

I fluted the ribs and modified the two nose ribs and two inspar ribs per the plans and marked them.

I drilled the inboard nose and inspar ribs to the forward spar. Then I deburred all the holes in all the ribs and then dimpled all the ones that mate up to the skins. So. Many. Holes. I can’t even imagine what the wings are going to be like.

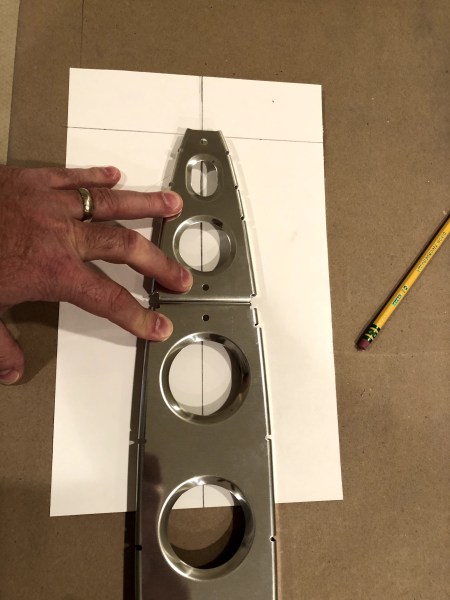

I also created a template to make cradles to hold the HS when assembling. I’ll scrounge some plywood to cut them from and some sort of square stock for the bases.

Today’s Time (hours):	3.0
Empennage Time (hours):	61.0
Total Time (hours):	61.0

Forward Spar Assembly Complete

Riveted the doubler and spar caps to the forward spar.

I received the torque wrench I ordered from Amazon and torqued the nuts securing the inboard hinge bracket to the rear spar.

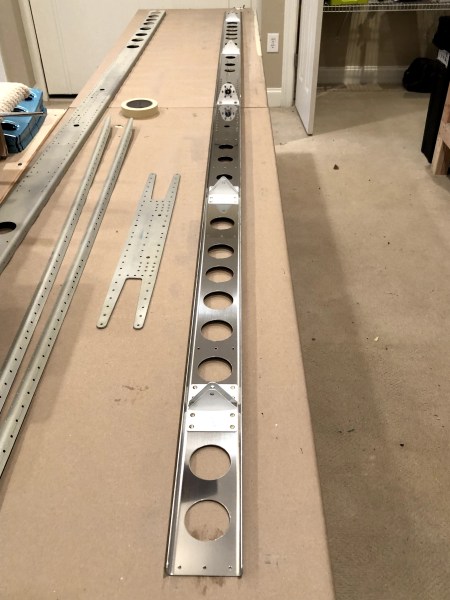

Both forward and rear spar assemblies completed. On to the ribs…

Today’s Time (hours):	2.0
Empennage Time (hours):	58.0
Total Time (hours):	58.0

Rear spar assembly complete

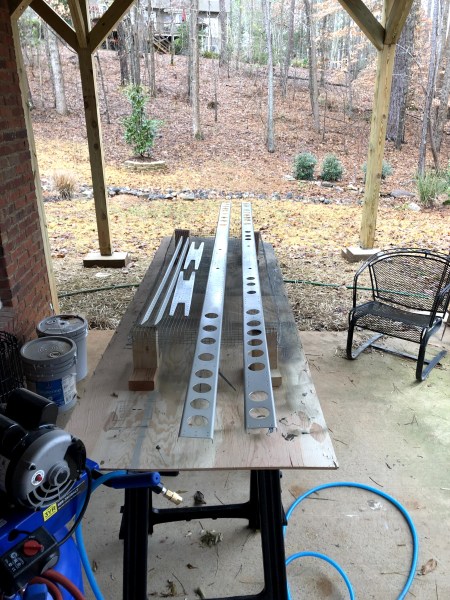

Scuffed the forward spar and primed all of the forward and rear spar parts.

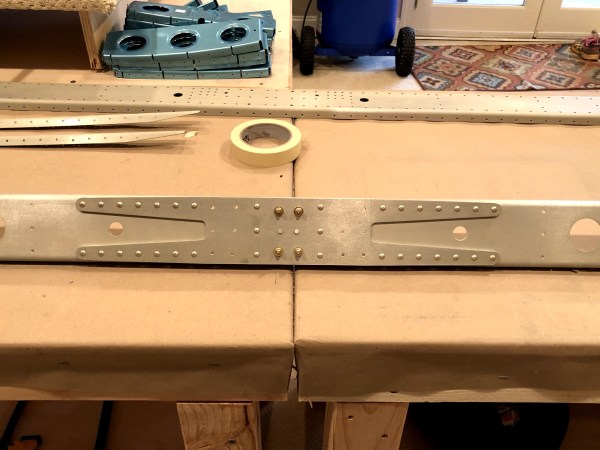

Riveted the front spar doubler. Used the squeezer for most of these.

Riveted all of the hinge brackets. Used the gun for these. My riveting skills have improved markedly. I haven’t had to drill any rivets since working on the rudder.

I bolted the inboard hinge bracket to the spar per the plans and realized I don’t have an in/lb torque wrench. So I ordered one from Amazon along with some tamperproof marker paint so I can keep track of which nuts have been torqued and easily inspect them later.

Off to FLL for work for the next few days. So no further progress expected until later in the week.

Today’s Time (hours):	2.5
Empennage Time (hours):	56.0
Total Time (hours):	56.0

Horizontal Stabilizer Front Spar

Got the font spar to the point where it’s ready to be scuffed and primed. This was way more work than it looked like in the plans. It all started with the spar caps. They had to be trimmed and deburred. Then they’re match drilled to the spar web. Then disassembled, deburred, reassembled. Then they are match drilled to the spar flanges, disassembled and deburred. There were approximately a million and one holes drilled and deburred in these things.

Then on to the spar doubler. The usual drill (no pun intended)… Deburr edges, fit, cleco, final drill, disassemble, deburr holes.

Countersunk twelve of the holes on the doubler.

And here are all the front spar parts ready for scuff and prime.

Today’s Time (hours):	5.0
Empennage Time (hours):	53.5
Total Time (hours):	53.5

Horizontal Stabilizer Rear Spar

Started work on the horizontal stabilizer today. The first part involves preparing the rear spar.

Screen Shot 2019-05-27 at 9.59.23 AM

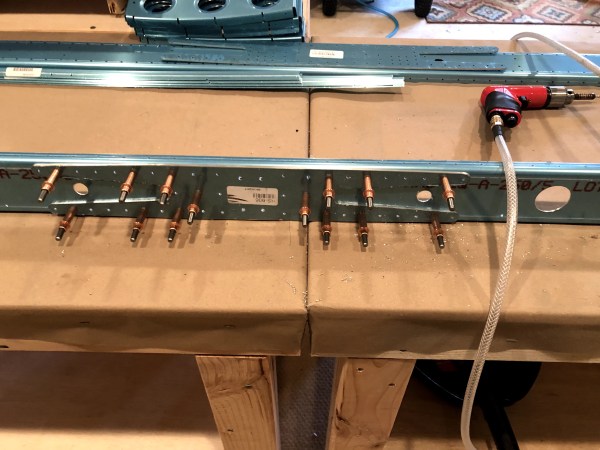

Deburred the rear spar and the rear spar doubler with the Scotch Brite wheel, files, a deburring tool and god old fashioned sandpaper. Got all the edges and lightening holes nice and smooth. Clecoed the rear spar doubler to the rear spar. Final drilled all the holes.

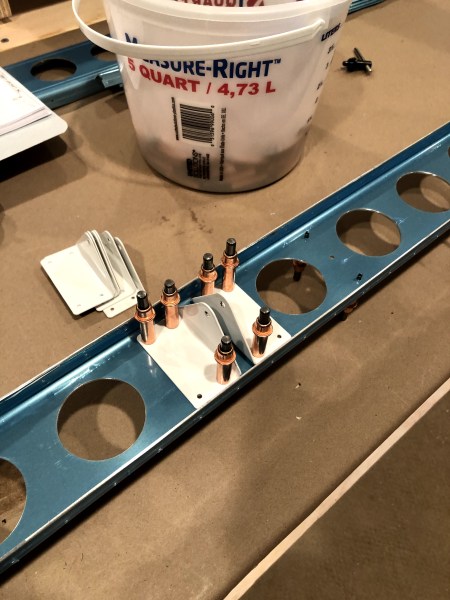

Clecoed the 8 outboard hinge brackets to the spar and final drilled.

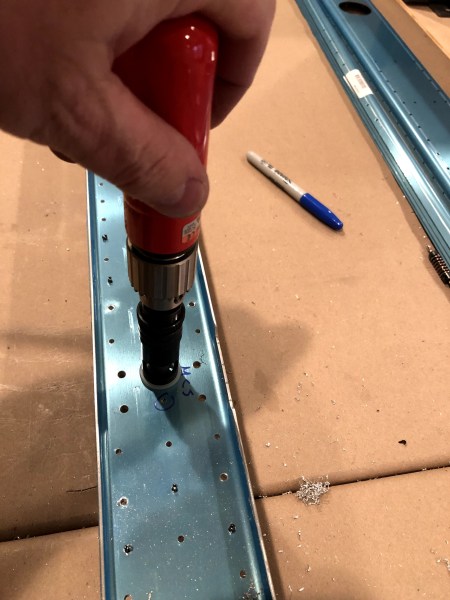

Machine countersunk the two holes in the center of the spar.

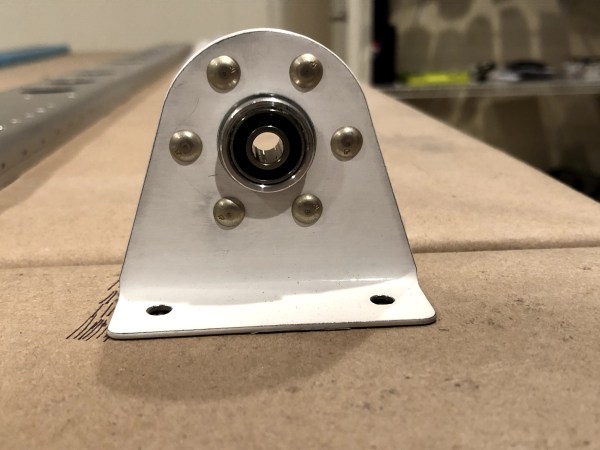

Fit, clecoed, drilled, disassembled, deburred, reassembled, and riveted the inboard hinge bracket assembly with the flange bearing in the middle.

Deburred and scuffed everything. Ready for primer. I’m only going to prime the inside of the spar. the outside will be painted when I paint the airplane. I neglected to account for this when I built the VS and rudder. I’m assuming the primer can be stripped from the outside of those spars in preparation for painting.

Today’s Time (hours):	2.5
Empennage Time (hours):	48.5
Total Time (hours):	48.5
