Machine countersunk the baggage floor splice plate and riveted in place.

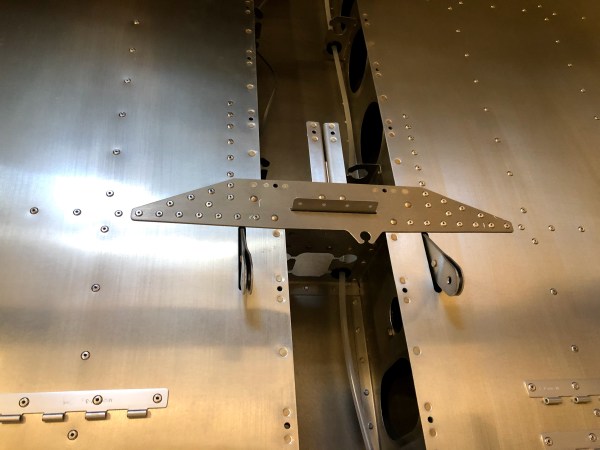

dimpled the flap motor channel and installed the nut plates. Then riveted it in place. Riveted the flap motor brackets to it.

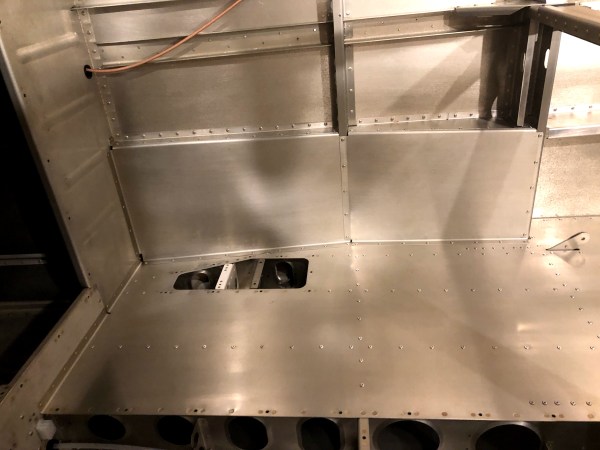

Riveted the baggage side walls in place.

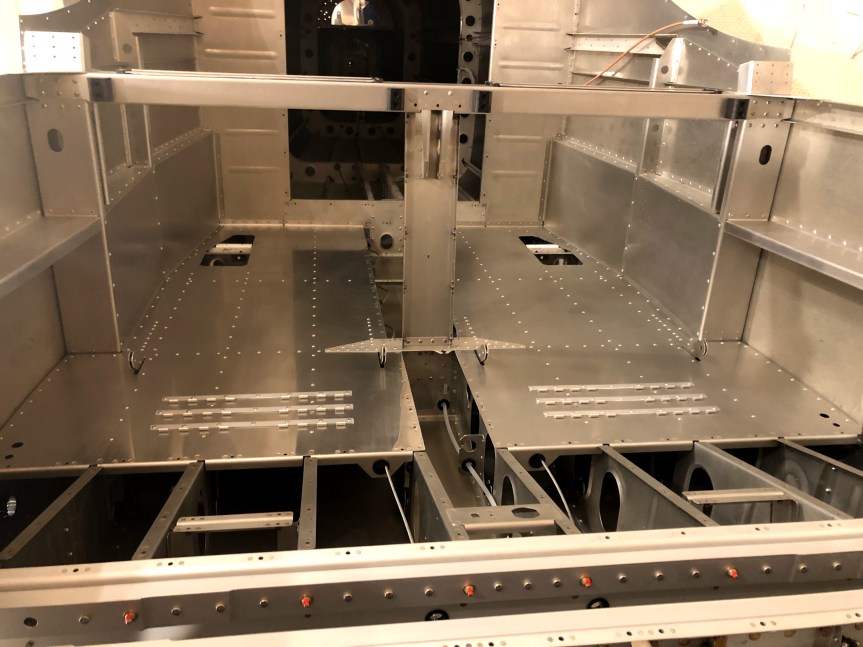

Bam! Baggage area. Done.
| Today’s Time (hours): | 3.0 |
| Fuselage Time (hours): | 155.0 |
| Total Time (hours): | 609.5 |
Riveted the baggage area floor skins in place. Riveted the seat back hinges to the floor skins.
| Today’s Time (hours): | 3.0 |
| Fuselage Time (hours): | 152.0 |
| Total Time (hours): | 606.5 |
Fabricated the seat back hinges and match drilled to the floor skins.
Deburred, Scuffed, and primed all of the parts.
Dimpled the floor skins and riveted the nut plates in place.
Installed snap bushing and routed the rudder cables, static line, and ELT wire.
| Today’s Time (hours): | 5.0 |
| Fuselage Time (hours): | 149.0 |
| Total Time (hours): | 603.5 |
Picked and inspected all the parts. Then I peeled everything.
Fabricated the flap bushings and installed them into the fuselage.
| Today’s Time (hours): | 2.0 |
| Fuselage Time (hours): | 141.0 |
| Total Time (hours): | 595.5 |
Ron's RV-14A Build Log
