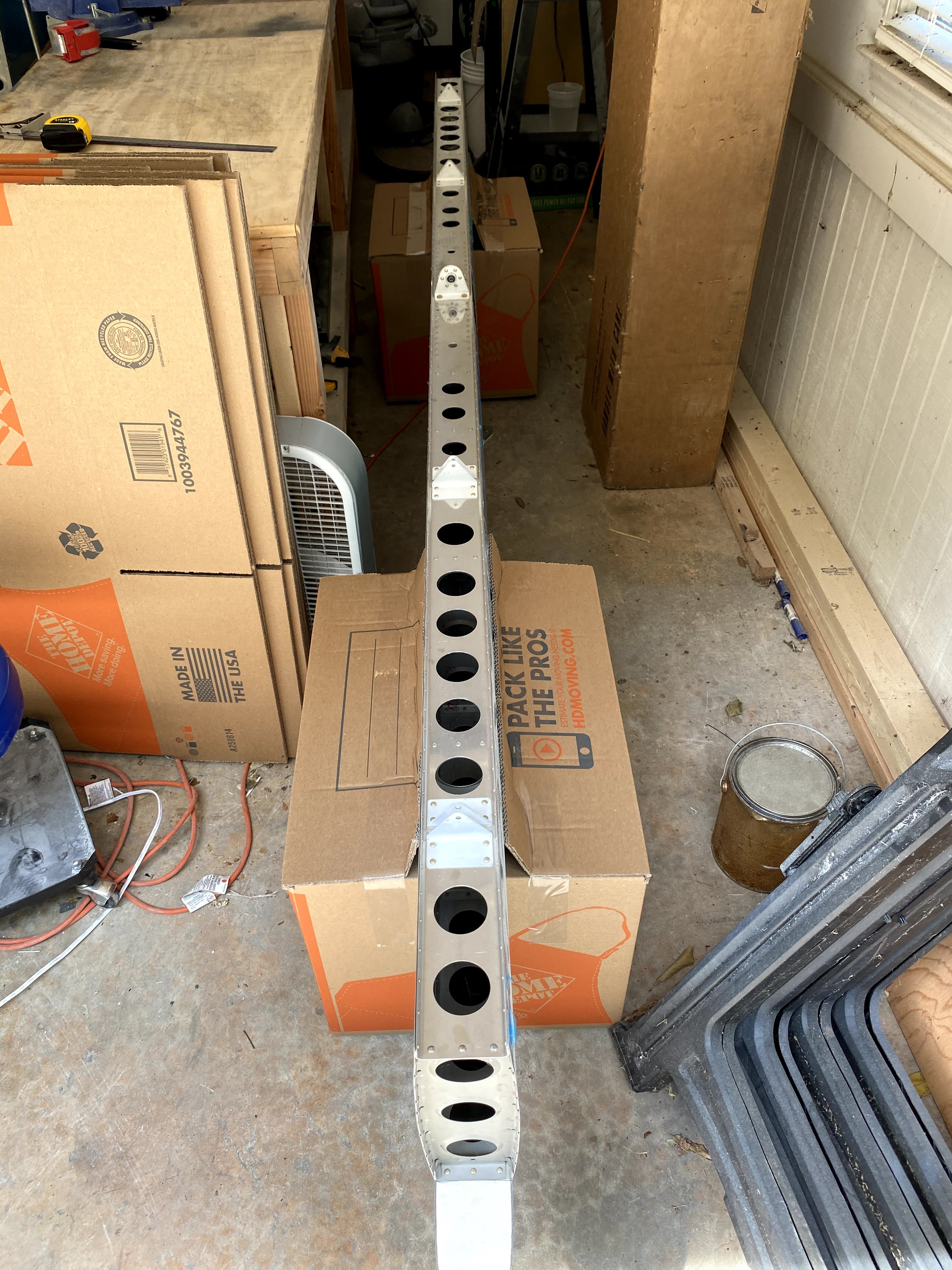

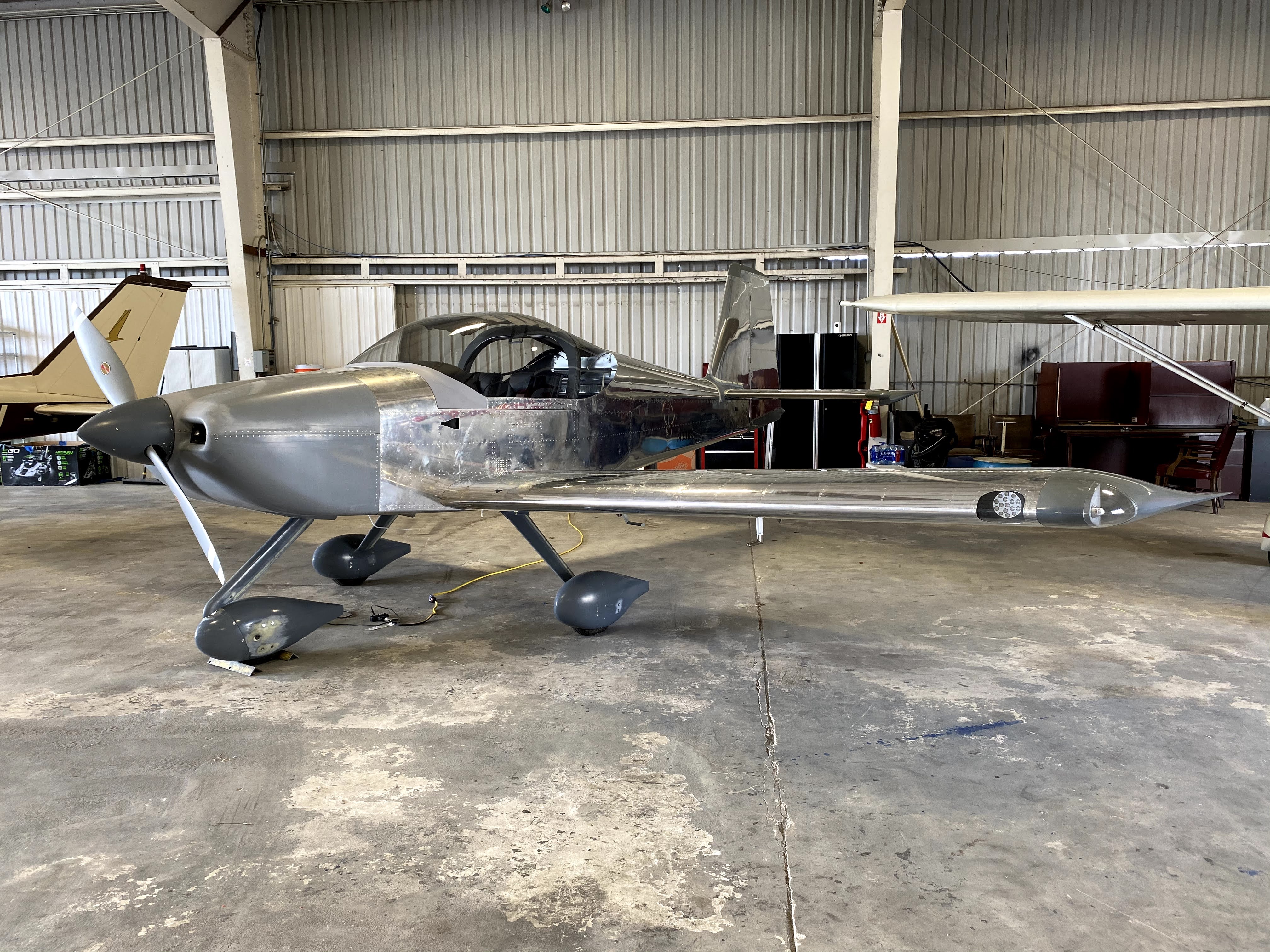

Completed Tricycle Gear Leg and Wheel Fairings (section 46) and finished installing the interior and empennage fairing

Trimmed and fit the intersection fairings. I reinforced them with flox per the plans. Drilled them out. Installed the nut plates in the wheel pants. Put everything back together. Gear fairing complete!



Prepared and installed the nose gear leg close out.

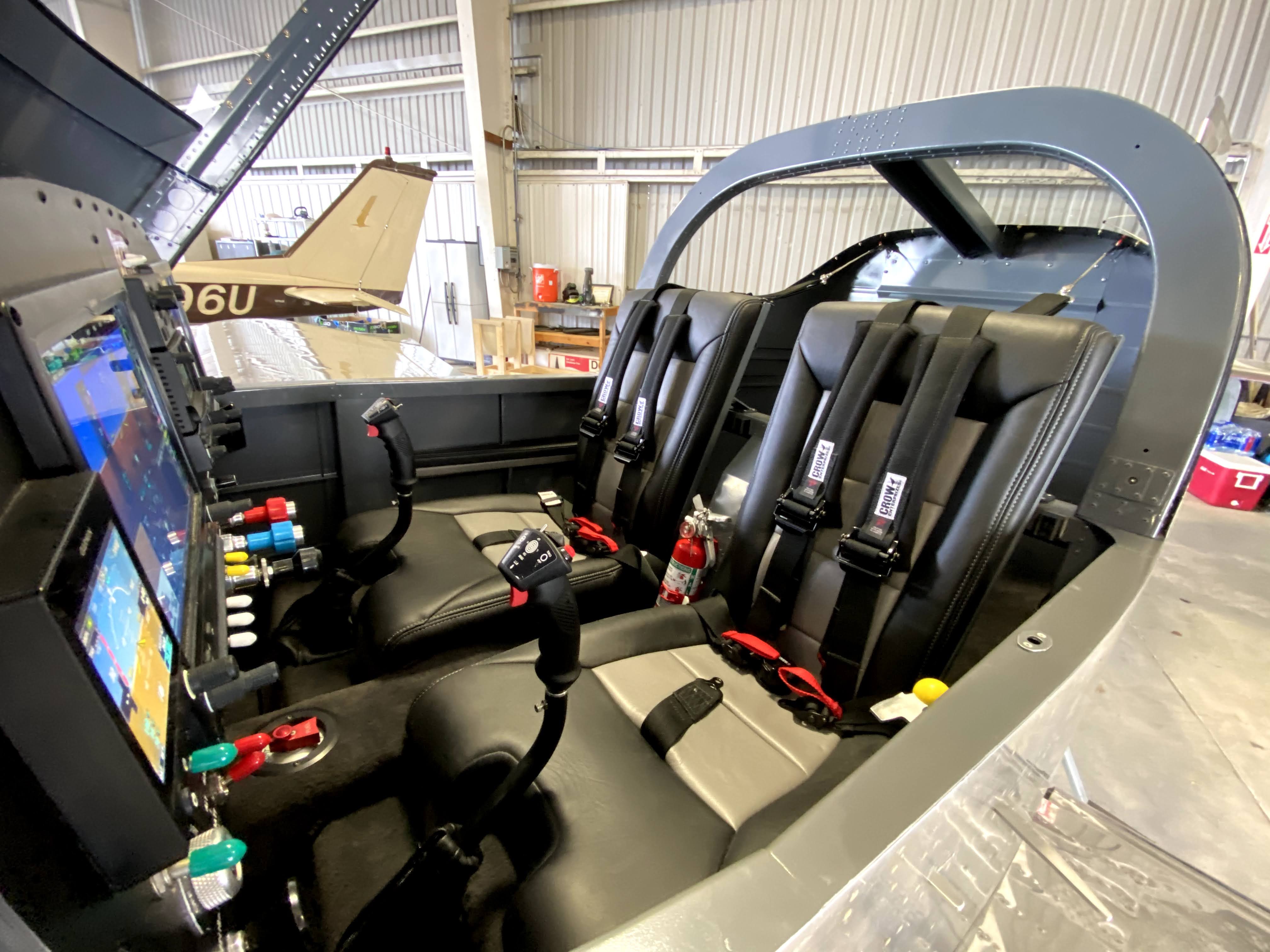

Mounted the fire extinguisher. Installed all of the carpets with adhesive velcro strips. I really like the Classic Aero carpets. They came with the trim rings for the power outlet and fuel selector. Looks nicely finished. Installed the fancy 3d printed rudder pedal extensions with my N number on them.

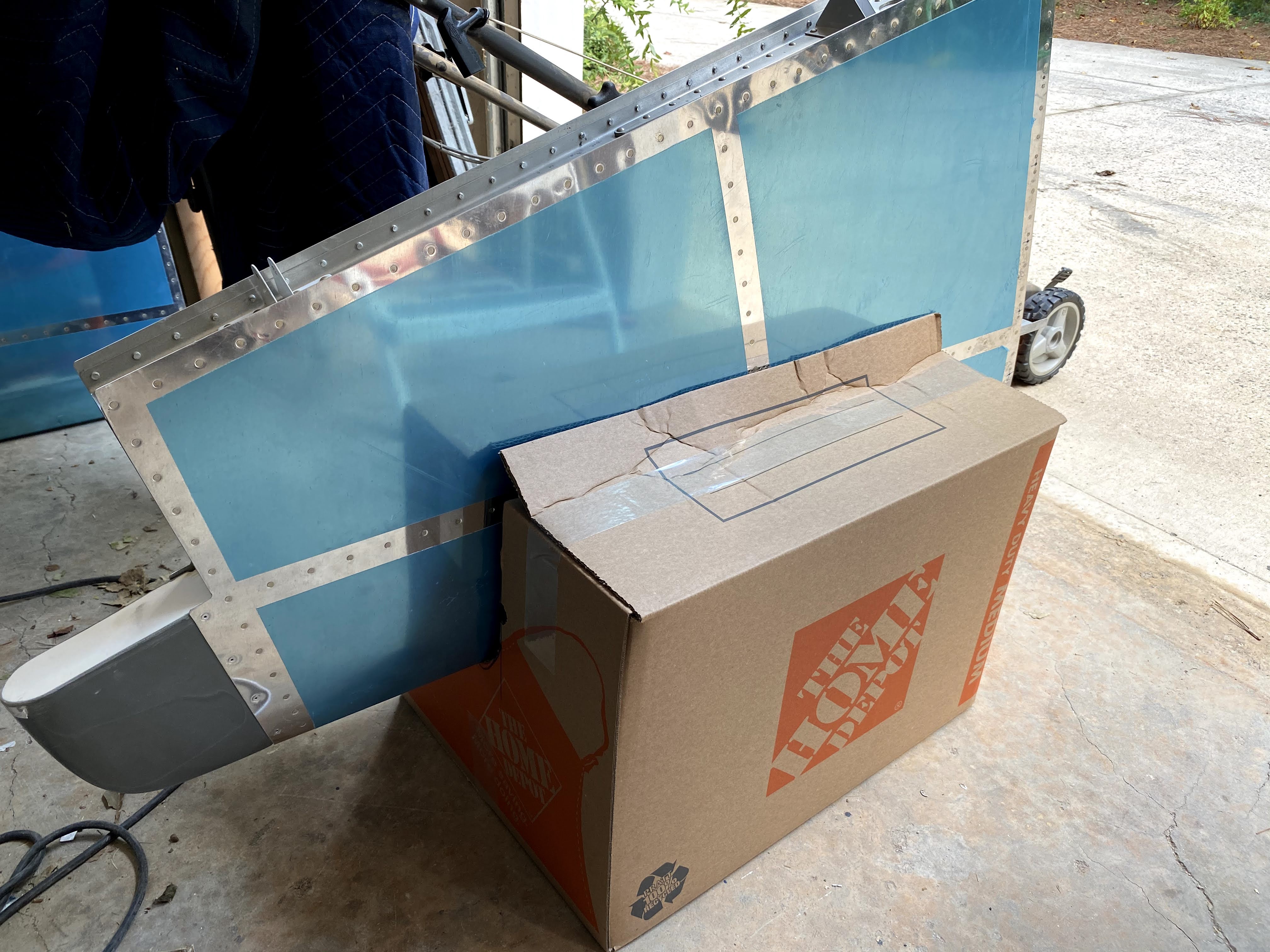

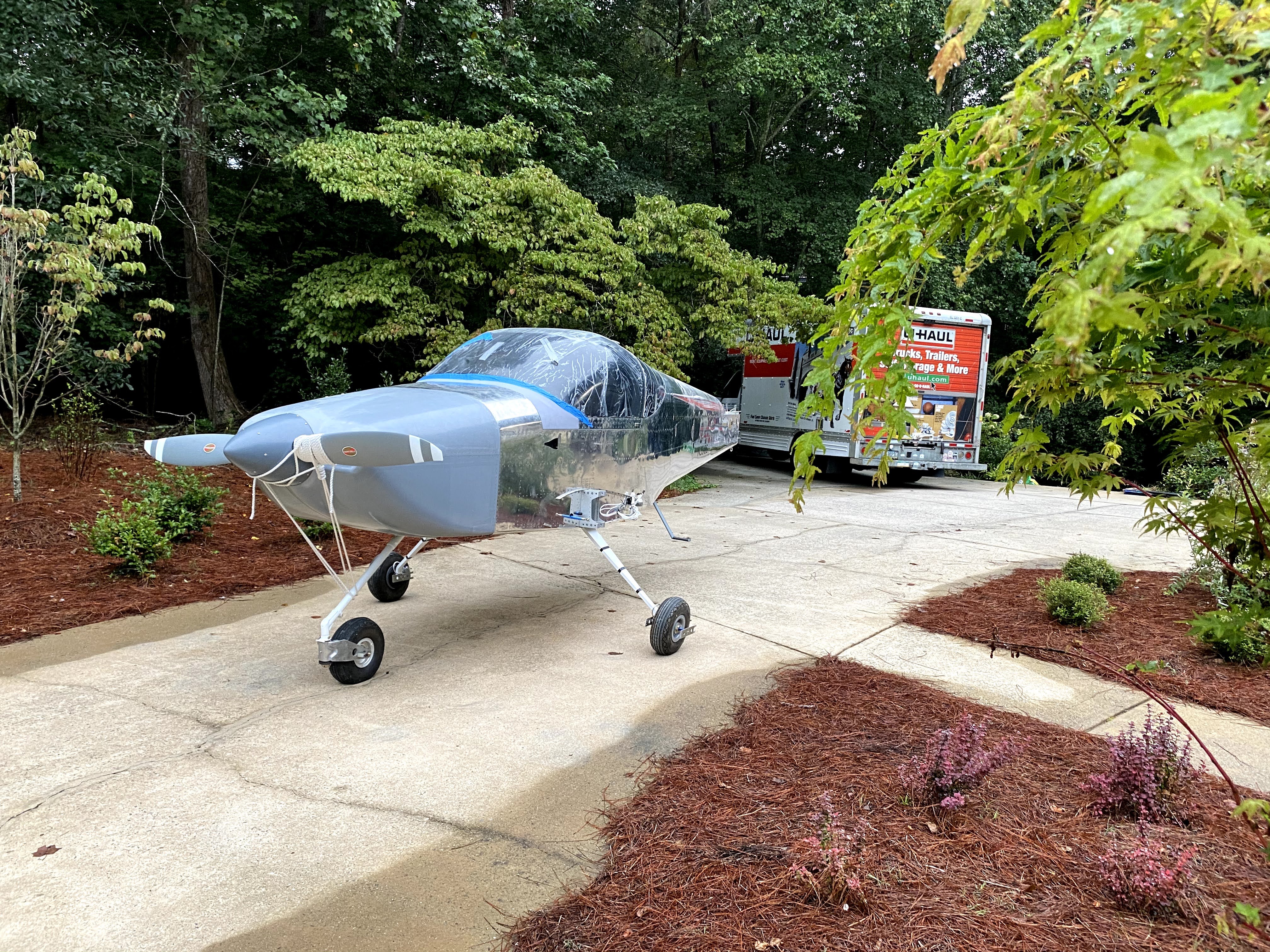

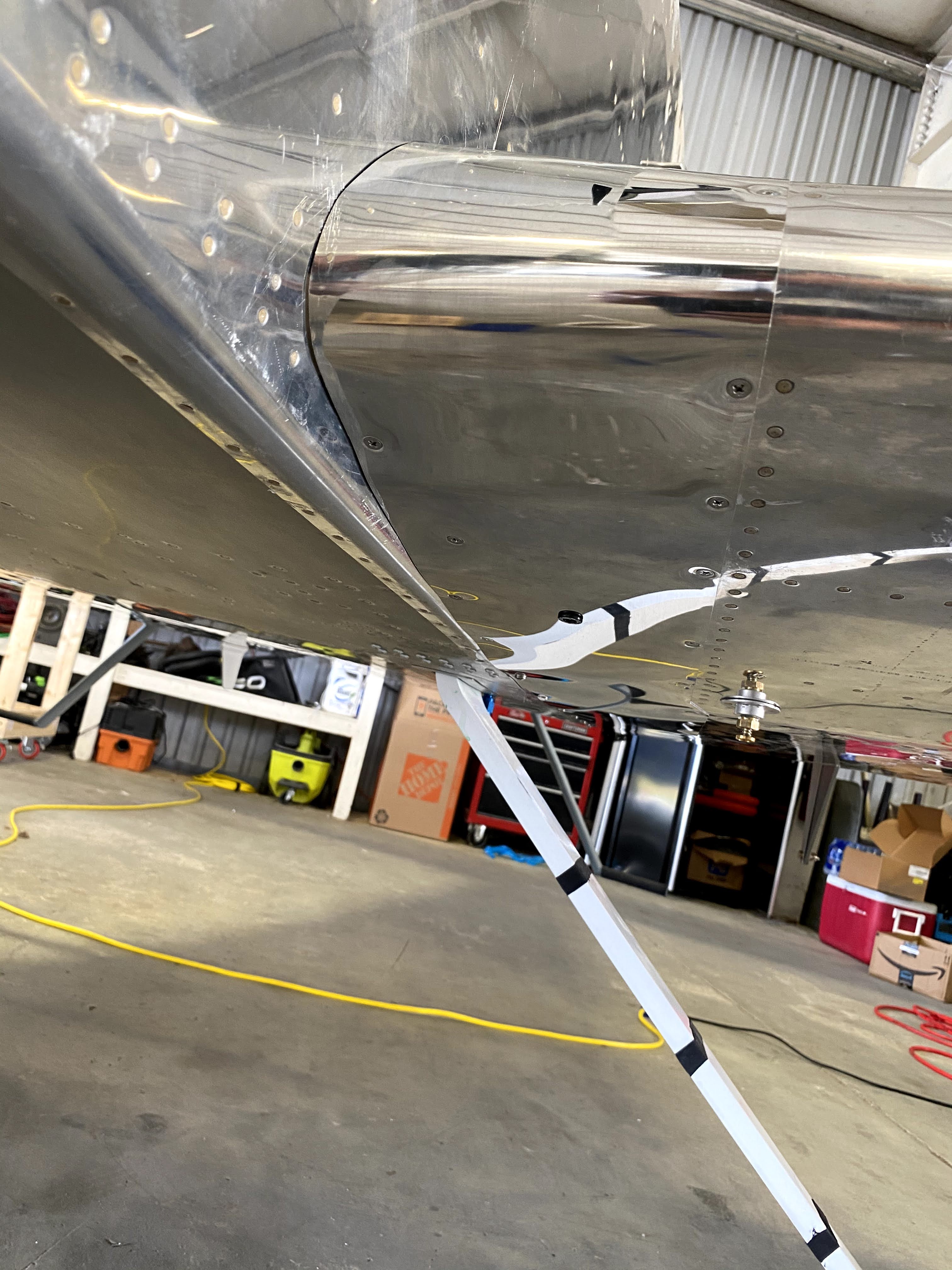

Pulled her out into the driveway and mounted the tail feathers. Remy helped me to trim and install the empennage fairing.



Today’s Time (hours): 20.00
Finish kit (hours): 393.0
Total Time (hours): 1127.0

Work continues on Fairings and Interior

Sorry… I’ve been remiss in posting my progress over the last week or so.

After failed attempts at mounting the nose gear fairing using magnets to locate the holes, I re-glassed the the faring to fill the errant holes and and scuffed of the the gel coat in order to locate them visually. This was SOOOOO much easier. I highly recommend not trying to locate the holes with the magnets as per the plans. Just take off the gel coat and do it visually. Save yourself a lot of time and heart ache.

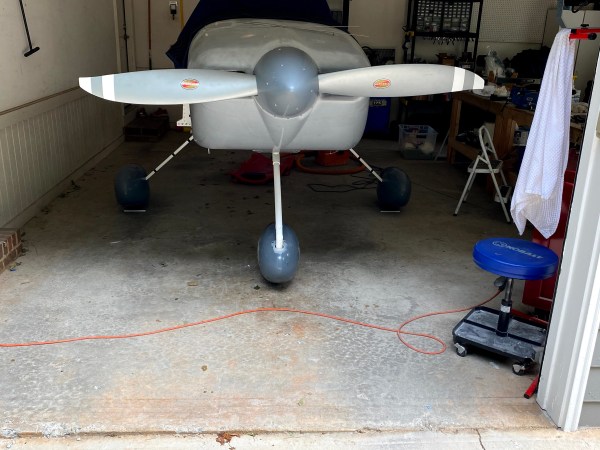

Finished up the main and nose gear fairings.



img_5154



Followed the plans to mount trim up the nose leg fairing and install the hinge that holds it together.



Installed the nose leg fairing.



Followed a similar process for the main leg fairings. Note the scuffed off gel coat where I needed to match drill… fool me once…



Installed the Crow five-point restraint system.



Deburred, prepped, painted and installed the interior panels… Flap motor housing, seat ramps, control column covers, the center cover that came with the Classic Aero carpets, etc.



Had to fabricate a new version of the mounting panel and cover for the fuse block. The one I originally made held the fuse block too low and when I installed the tunnel cover, it interfered with the lower power stud of the fuse black and would have created a short circuit.





Today’s Time (hours): 36.0
Finish kit (hours): 373.0
Total Time (hours): 1107.0

Started Tricycle Gear Leg and wheel Fairings (Section 46A) and other misc stuff.

Screen Shot 2020-07-05 at 8.49.03 PM

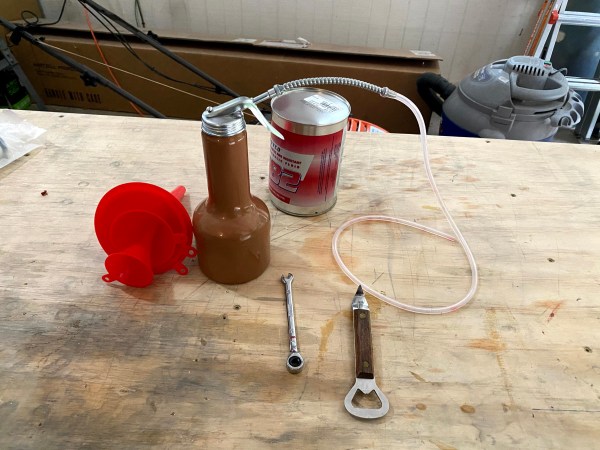

Filled and bled the brakes. Used a pump type oiler to fill the system from the bleeder valves.

img_5087



Installed my data plate and N number. I made the N number out of vinyl using my Cricut vinyl cutter. I ordered the data plate from https://www.engravers.net/.



Installed the com and transponder antennas.



Can you tell I’ve been procrastinating at the prospect of starting another fiber glass project? Trimmed and fit the forward and aft halves of the main gear fairings. Cut the hole for the gear legs. Deburred and primed all of the gear brackets. Machine countersunk the main gear brackets and riveted the nut plates on. Had to pause on the Main gear Legs. Couldn’t find the AN3H-3A bolts to mount the brackets anywhere. Ordered new ones from spruce and turned my attention to the nose gear.



Fabricated the nose gear stand-offs using an angle grinder, a file and the drill press.



Made a minor mod to the garage. Installed a D-ring so that I could use a ratchet strap to the tail tie-down ring to lift the nose wheel.

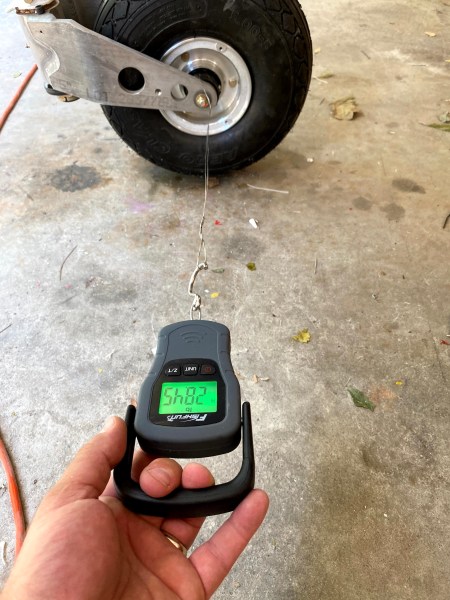

I set the breakout force on the nose gear using a digital fish scale and some safety wire.

img_5113



I upgraded the nose gear axle to the Matco one. This place an extra AN3 bolt through the gear fork. It interfered with the right wheel fairing bracket. So I cut a bit out to make room.



Trimmed the nose gear fairing halves, fit and match drilled them together. Mounted it on the brackets and futzed with the whole thing for a while to get it straight.  Used a plumb bob to drop a longitudinal reference line to the floor. Had to use magnets to transfer the hole locations. They kept moving. Drilled multiple extra holes that I’ll have to fill later. Pure fuckery but managed to get everything situated reasonably straight.





Today’s Time (hours): 14.0
Finish kit (hours): 337.0
Total Time (hours): 1071.0

Installed brakes, sealed firewall, finished cowls and baffles

Sealed up the firewall pass throughs. I followed the Van’s instructions on the left side using fire sleeve and RTV. It was challenging to get the fire sleeve stuffed into the fitting around the wire and also to safety wire the outer sleeve in place. Big hands. Small spaces. On the right side, there was no way I was going to be able to get my hands into the space necessary to take this same approach. I was able to form a cone around the cables/wires with tape. I then used a calking gun to fill the void with 3M Fire Barrier 2000+. The tape on the forward side formed a mold to force the sealant between all of the wires. Made a huge mess but it worked.



Installed AN fittings into brake calipers. Fabricated the brake lines and installed.



Finished installing the baffle seals on the cowling and installed the cowling back on the airplane.



I also spent some time tidying up the wiring under the panel and installing the adel clamps and wire ties on the control cables.



Today’s Time (hours): 10.0
Finish kit (hours): 323.0
Total Time (hours): 1057.0

Finished Snorkel, Installed Baffle seals, Installed control cables



Installed the alternate air door in the snorkel.



Formed the right air ramp cone and the cone in the air filter cover and installed them.



Installed the baffle seals.



Installed ignition wire pass-throughs, the blast tubes for cooling the mag/ignition, and sealed the baffles to the engine case with RTV.



Clamped the clamping strips in place on the lower cowl air inlets and filled the gaps with flox.



Installed the throttle, prop, mixture and alternate air control cables.



Today’s Time (hours): 20.0
Finish kit (hours): 313.0
Total Time (hours): 1047.0

Installed baffles and snorkle

Installed the aft baffles.. Pretty straightforward. Only thing I needed to trim was a path for the Manifold pressure line form the number 3 cylinder.



Installed the forward baffles. Also straightforward. Needed to trim a bit where the left baffle meets the case just forward of the #2 cylinder.

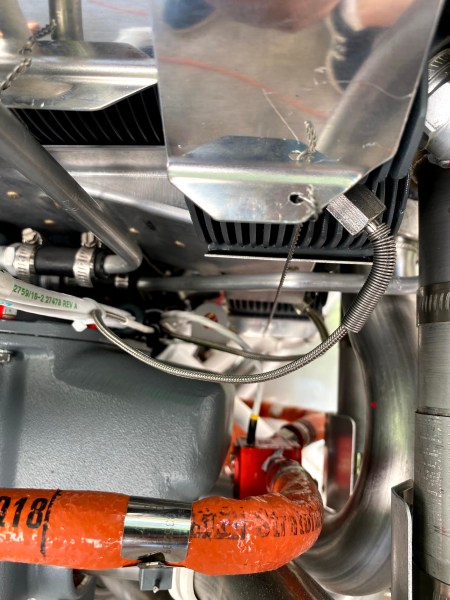

Decided to go with safety wire to tie the bottom of the baffles together rather than the rods. After a bit of research this seems to be a tried and true method and it’s a lot easier to install and remove.

img_4999-1



Fit and trimmed the snorkel. clecoed/bolted it all in place and bonded it to the air cleaner frame with epoxy and flox.



Connected up the SCAT tubes for the oil cooler and cabin heat.



Today’s Time (hours): 8.0
Finish kit (hours): 293.0
Total Time (hours): 1027.0

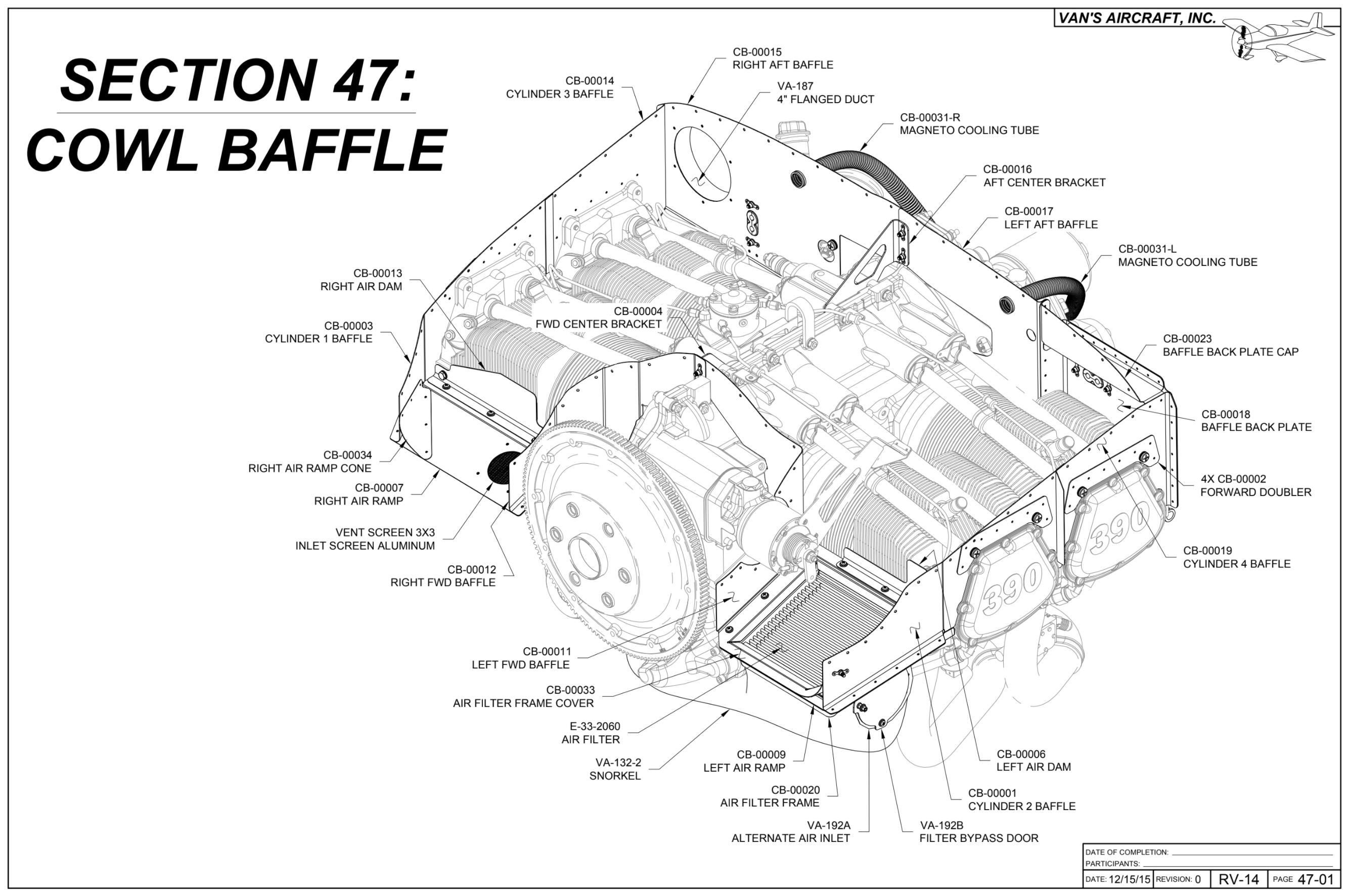

Started Cowl Baffle (Section 47)

Screen Shot 2020-06-13 at 6.34.10 PM



Picked, Inspected, and deburred all of the cowl parts.



Trimmed and deburred the cylinder baffle doublers and riveted to the cylinder baffles.



Installed nut plates and oil cooler flange and assembled aft baffles. Added strips of RTV to the mating surfaces.



Trimmed the air cleaner frame, added nut plates and fit to the inlet ramp. Assembled the left inlet ramp.



Attached the SCAT tube flange and screen for the heater air inlet to the right inlet ramp. Assembled the right inlet ramp. Added RTV strips to the mating surfaces of the inlet ramps.





Today’s Time (hours): 8.0
Finish kit (hours): 285.0
Total Time (hours): 1019.0

Completed Cowling

Drilled the screw holes on the bottom of the cowling

img_4953



Attached the inlet ramps with epoxy and flox. Filled, sanded and sealed the areas where the baffle seals will seal against the top cowl.



Installed the heat shield foil in the lower cowl and sealed the edges with epoxy.

img_4958



Today’s Time (hours): 10.0
Finish kit (hours): 277.0
Total Time (hours): 1011.0

Work on cowl continues

Match drilled the top and bottom cowls to the cowl hinges.



I disassembled the cowls, deburred all the holes in all the hinges. I coated the inside of both cowl halves with thin coating of resin to seal it all up.

img_4851



Riveted all the hinges to the cowl halves



Trimmed and sanded the fiberglass inlet ramps and fit them to the top cowl. They gat match drilled to the cowl core just deep enough to hold a cleco to clamp it in place for bonding with epoxy and flox. I didn’t get any pics of the bonding process and I put it back on the fuse to cure before I could get a shot of the finished product.



I did decide to get the oil door done once the epoxy set up sufficiently. It was a pretty straightforward process.





I reinstalled the spinner. She’s coming along!

img_4949-1



Just have to drill the attachment holes on the bottom of the cowl and blend in the inlet ramps and the cowl will be complete.





Today’s Time (hours): 14.0
Finish kit (hours): 267.0
Total Time (hours): 1001.0

Started work on cowling

screen-shot-2020-06-06-at-7.25.04-am

Another busy week at work. Didn’t even have a chance to post last weekend’s build sesh. So here it is a week late.

Fabricated and installed the cowling hinges



Trimmed the top and bottom cowling with a cut-off wheel in the Dremel and some course sandpaper on a long sanding block. Cut out the landing gear hole and the oil door.



Clamped the cowl halves together and fit, trimmed and sanded the spinner and air inlet areas. This took several iterations to fit properly.



Had to do a couple of iterations of trimming the aft edge of the top cowling to get it to fit in place. Marked the rivet locations on the cowling and drilled them. Then match drilled those holes to the cowling hinges.



Several iterations of trimming and sanding the bottom cowling aft edge, then the top edges. Marked the rivet locations and drilled them. The match drilled to the cowl hinges.



Clamped the hinges that join the top and bottom cowling in place. Layed out the rivet line and match drilled the bottom cowling to the hinges. Located and cut out the notches in the top cowling for the tabs that secures the hinge pins.



Today’s Time (hours): 12.0
Finish kit (hours): 253.0
Total Time (hours): 987.0
