Finished riveting everything to the rear spars… almost.

Finished riveting all the stuff to the spars…

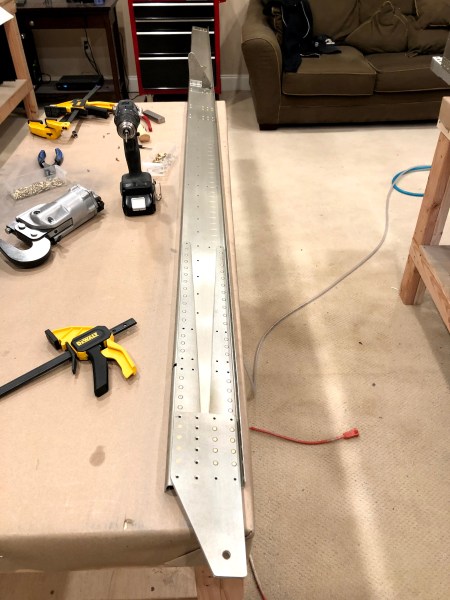

img_2361

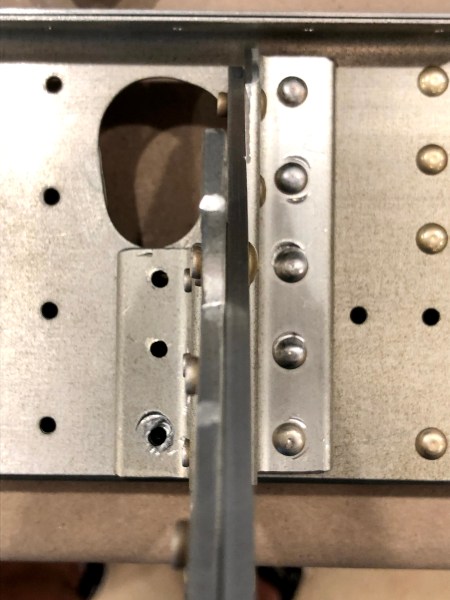

I really struggled riveting the aileron hinge brackets to the spar. Couldn’t get the squeezer in there. My rivet set wasn’t long enough to clear the bracket. So I had to use the offset rivet set. But that one is thicker and interfered with the bracket rivets. Mangled a bunch of rivets and drilled them out. Ended up mangling the bracket and bending the doubler drilling out one of them. Thankfully the spar was undamaged.

img_2355

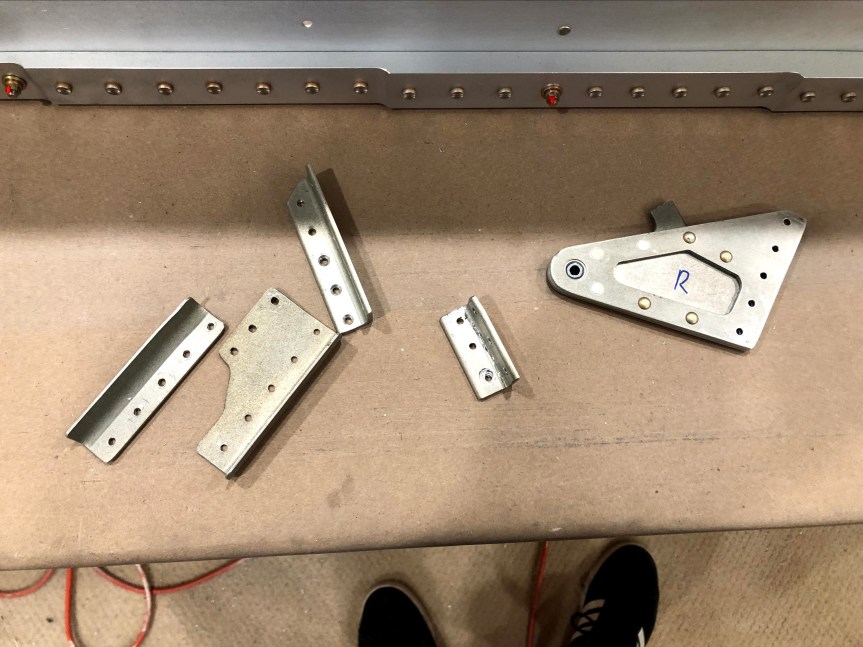

I drilled out all the rivets and disassembled the brackets and doublers. The hinge is fine. Emailed Van’s to send me a new doubler and angle bracket.

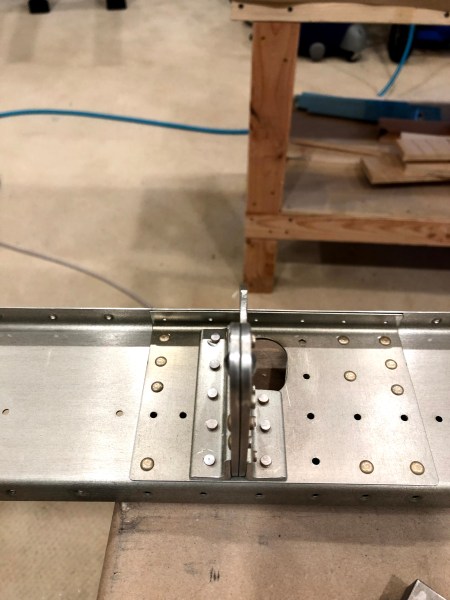

On the other wing I had the brilliant idea to try shooting the rivets for the hinge bracket from the other side of the spar. This worked a lot better.

img_2359

Should have replacement parts by next weekend when I get back from Florida.

Today’s Time (hours): 2.0
Wing Time (hours): 65.0
Total Time (hours): 276.0

Rinse, repeat, right spar complete

Match drilled the J channel to the spar.

img_2217

Machine countersunk the nutplate attach holes.

img_2220



Riveted in the nutplates

img_2221



Countersunk the screw holes.

img_2222



Machine countersunk all the skin attach holes.

img_2229



Riveted in the nutplates at the tip end of the spar.

img_2225



Riveted the doubler to the spar and installed the tank attach nutplates.

img_2226



Final drilled, deburred, scuffed and primed the aileron bell crank brackets

img_2224

Installed and torqued the aileron bell crank brackets.

img_2230

Right spar done!

img_2231



Today’s Time (hours): 4.5
Wing Time (hours): 21.5
Total Time (hours): 232.5



Left spar complete

Riveted the spar to the doubler with the 5 AN470 rivets using the squeezer. Then shot the tank attach nutplates using the gun.

img_2211

Final drilled and deburred the left aileron brackets.

img_2212



Scuffed and primed the aileron brackets with rattle can.




Installed and torqued the aileron brackets to the spar.




Put up the left spar and moved the right spar to the bench. Hopefully I’ll get that one knocked out tomorrow.

img_2215



Today’s Time (hours): 1.0
Wing Time (hours): 17.0
Total Time (hours): 228.0



Countersunk ALL the holes

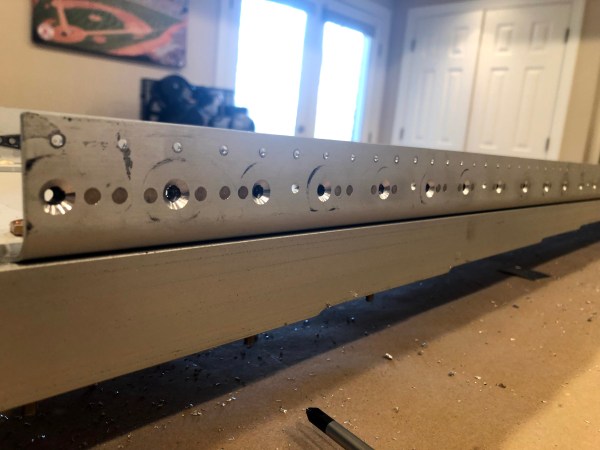

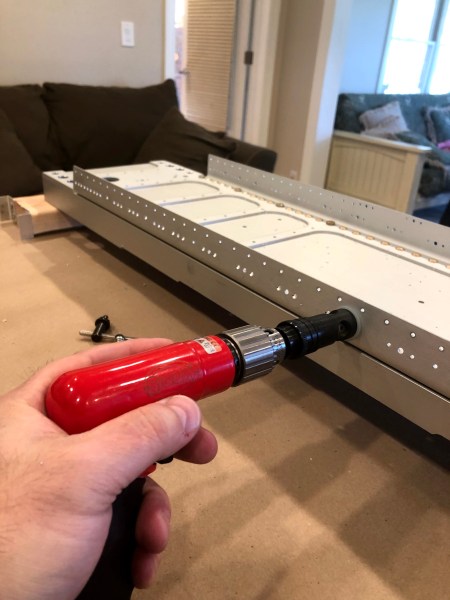

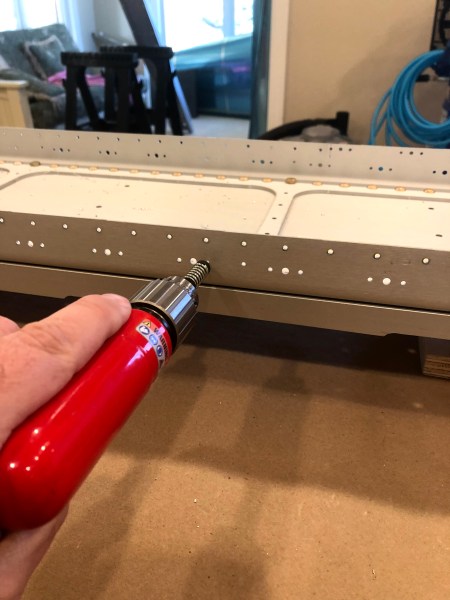

Countersunk the tank attach screw holes.

img_2207



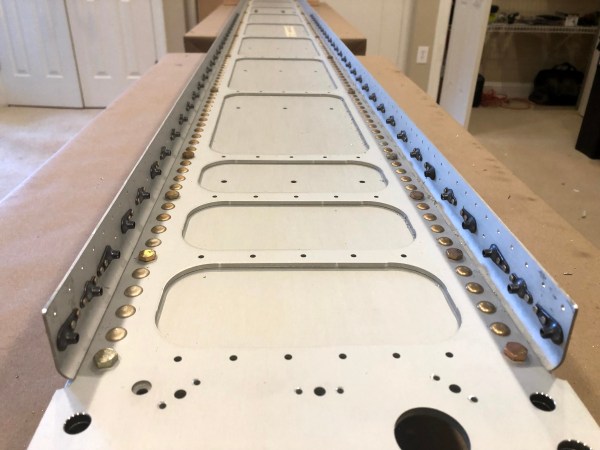

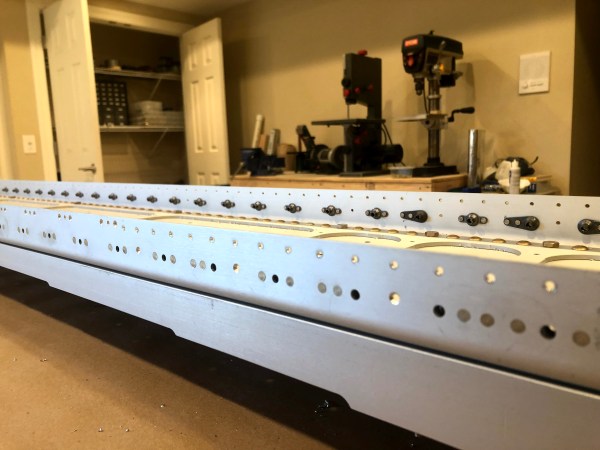

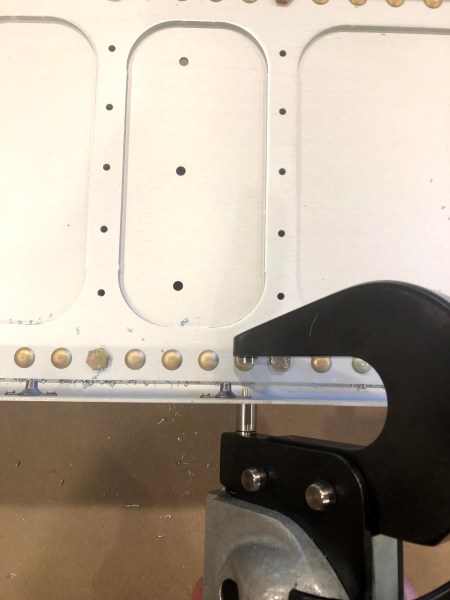

Installed the inspection plate nut plates and countersunk the screw holes.

img_2208

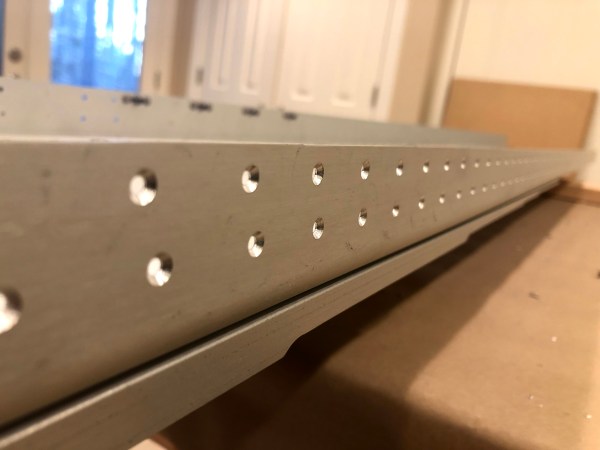

Countersunk all the skin attach holes.

img_2210



Installed the snap bushings and the the four nutplates at the tip end of the spar.

img_2209

Today’s Time (hours): 2.0
Wing Time (hours): 16.0
Total Time (hours): 227.0



Started the wing build

Cut the J channel to the specified lengths with the Dremel tool and a cutoff wheel.

img_2196

Clamped the J channel to flange leaving it 1/16″ proud of the flange.

img_2197

Drilled and clecoed the J channel.

img_2198img_2199

Flipped the lower J channel to the upper flange to finish the holes where the nut plates were on the lower flange. I marked the J channel and set aside for later when the skins go on.

Today’s Time (hours): 2.0
Wing Time (hours): 12.0
Total Time (hours): 223.0
