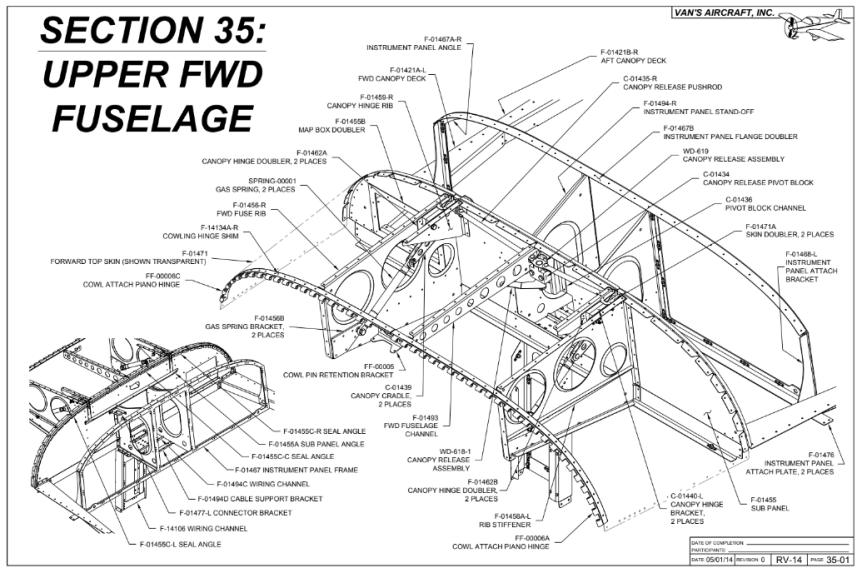

Dimpled top side skins and aft deck

Dimpled the top side skins. I used the squeezer for most of the holes and the DRDT-2 for the ones the squeezer couldn’t reach.

IMG_1998-1

I clecoed the side skin on. And I actually remembered to peel the rivet lines this time.

IMG_1995-1

I dimpled the F-01409 frame.

IMG_1996-1

And the aft deck.

IMG_1997-1

I clecoed the aft deck, F-01409 frame in place along with the Horizontal Stab Attach Bar Support Angle and deck angle. I clamped the attach bar to the support angle and match drilled. I also match drilled the deck angle to the aft bulkhead.

IMG_1999

I dimpled the cover plates for #6 screws as well. Then I realized for the first time that the cover plates are not symmetrical. <moan> And of course one is now dimpled the wrong way and primed on the wrong side. I went to order a new one from Van’s web site only to find that F-14112 does not exist in their parts inventory and it’s an hour after closing time. Oh well. I’ll call the tomorrow. No big rush given that I’m almost out of parts and my wing kit isn’t scheduled to ship for more than a month.

IMG_2002

Today’s Time (hours): 2.5
Empennage Time (hours): 177.0
Total Time (hours): 177.0



Top skin assembly

Broke the edges of the top skin with the edge roller. Peeled the vinyl from the rivet lines and dimpled the top skin on the DRDT-2.

IMG_1990

Dimpled the top rib with the squeezer.

IMG_1991

Dimpled the top skin doubler with the squeezer.

IMG_1992

Dimpled the stiffener and back riveted it to the skin. Back riveted the doubler and riveted the rib with the gun and bucking bar.

IMG_1993



Today’s Time (hours): 1.5
Empennage Time (hours): 174.5
Total Time (hours): 174.5



Started riveting the side skins

Finished peeling the vinyl from the right side.

IMG_1973



Remy helped my shoot some rivets so we got the aft bottom skin riveted to the bulkheads.

IMG_1975

Then since I had his help we riveted the side skin to the bottom skin. I figured we’d start here while I had his help as I cannot reach those by myself. Unfortunately I read the note in the plans that said to start on the flats and work around the curve after we riveted this. I think If i just work around the curve and work my way up the side it will be fine. I’ll do the other side in the correct order.

IMG_1977

All in all good progress today.

Today’s Time (hours): 2.0
Empennage Time (hours): 160.0
Total Time (hours): 160.0



Slow night in the shop tonight

I used the soldering iron to peel the vinyl from the rivet lines of the skins that I should have done before I clecoed the skin to the substructure. I removed a section of clecos and stripped the vinyl, replaced the clecos, and moved to the next section. Got through one side. I’ll get the other side tomorrow.

IMG_1971

Today’s Time (hours): 0.5
Empennage Time (hours): 158.0
Total Time (hours): 158.0



Primed Tail Cone Parts

I peeled the blue vinyl from the j channel that’s formed into the edges of the bottom skin so that I could scuff and prime those along with the inside of the skin.

IMG_1923

First batch of four ready to shoot.

IMG_1924

Second batch was the rest of the bulkheads and bell crank ribs (not pictured) and the third batch included the longerons and stiffeners. The last batch was the bottom skin.

IMG_1925

Et viola!

IMG_1926

Tomorrow I’ll begin assembling the tail cone. Once I get the substructure assembled and riveted to the bottom skin, I’ll have one more big scuff and prime session for the skins and the few remaining substructure components.

Today’s Time (hours): 3.0
Empennage Time (hours): 147.0
Total Time (hours): 147.0



Began Work on the Aft Fuselage

IMG_1855

The aft fuselage build begins with cutting and trimming parts. Separated the rudder cable guides.

IMG_1853

Separated the various j-stiffeners, longerons, and battery angles. Modified several of the parts according to the plans. Dimpled a couple. And straightened the HS attach bars.

IMG_1854

This was the first nice flying day we’ve had in the Atlanta Area in a week or so. So Sophie and I took advantage and did a little sightseeing in the Skyhawk around north Georgia. Absolutely beautiful flying day.

IMG_0311

IMG_0310

IMG_0289

We also paid John and Bernie a visit in the McCollum control tower after we got back and things had slowed down a bit at the airport.  They really had their hands full today. It was very busy with the nice weather. On the way out we were one of six flights waiting for departure and they had three in the pattern, several arrivals inbound and a transitioning aircraft all at the same time. These guys are awesome at what they do.

IMG_0375

Today’s Time (hours): 2.0
Empennage Time (hours): 128.0
Total Time (hours): 128.0



Scuffed Parts and Skins

Started the day with a nice flight in Jared’s RV-14. We met up at KPUJ and flew down to KFFC where we met up with Wes and Skip who flew down from Cartersville in Wes’s RV-7. Lunch and a visit to Aircraft Spruce rounded out the afternoon. Then took the long way back to KPUJ. Awesome flight!

Got home and finished scuffing all the parts with some help from Sophie.

IMG_1774

I Peeled the elevator and trim tab skins. Then I Deburred the edges and put a slight break in the trailing edge per the plans.

IMG_1775

Finally, I scuffed the insides of the skins.

IMG_1776

All ready to shoot primer and start dimpling tomorrow.

Today’s Time (hours): 3.0
Empennage Time (hours): 91.0
Total Time (hours): 91.0
